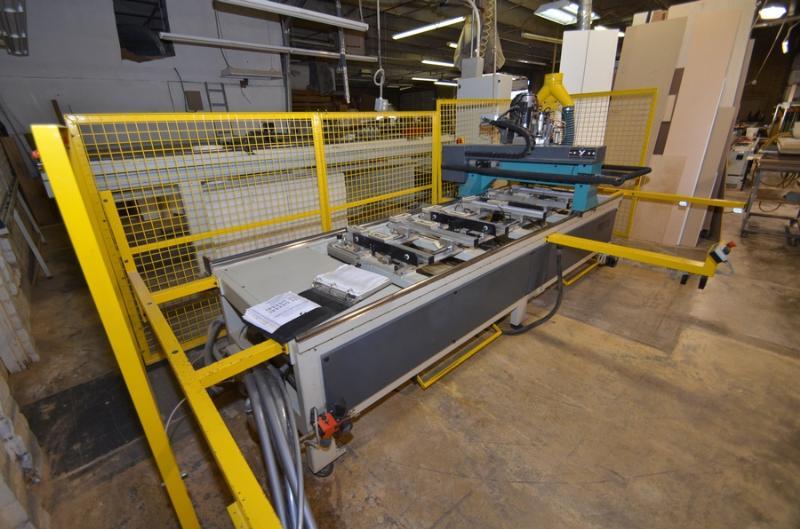

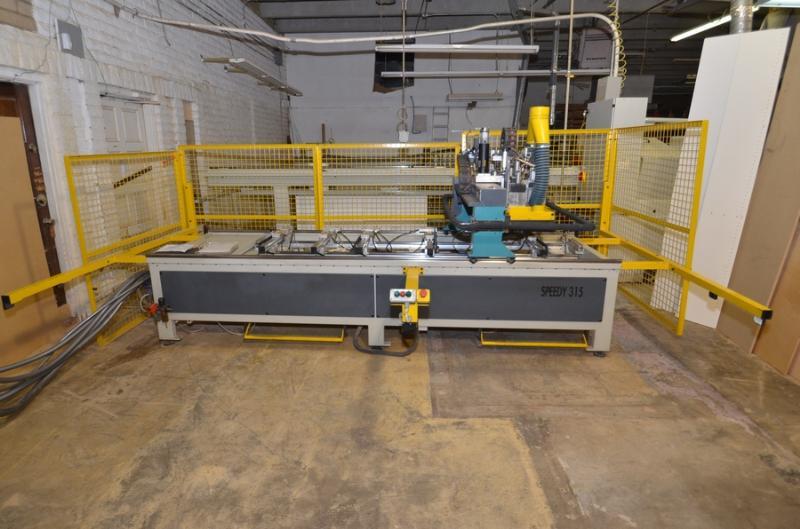

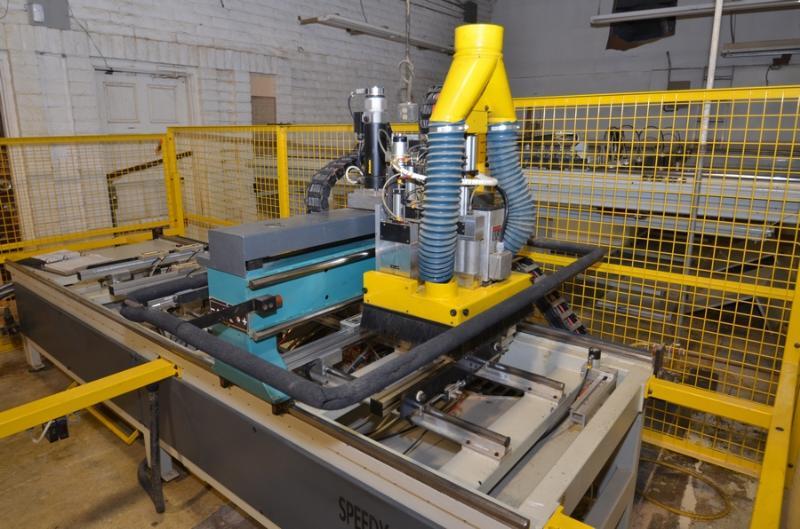

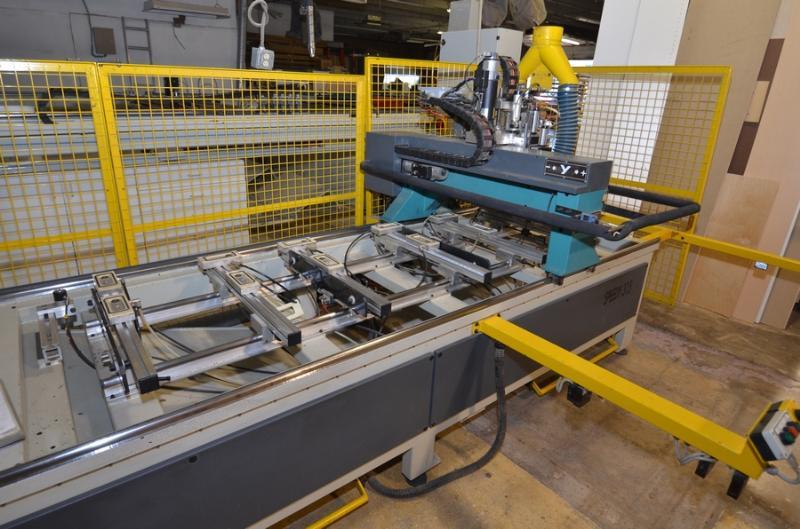

MASTERWOOD SPEEDY 315 CNC MACHINING CENTER
Equipment Location: PHOENIX, AZ
| Lot Closes: |
|
(4/5/2016 2:09 PM EST)
|
|
Event:
|
|
EURO-LINE MILLWORKS, INC
|
|
Brand/Model:
|
|
MASTERWOOD "SPEEDY 315"
|
|
Year MFG:
|
|
1995
|
|
Machine Type:
|
|
CNC MACHINING CENTER
|
|

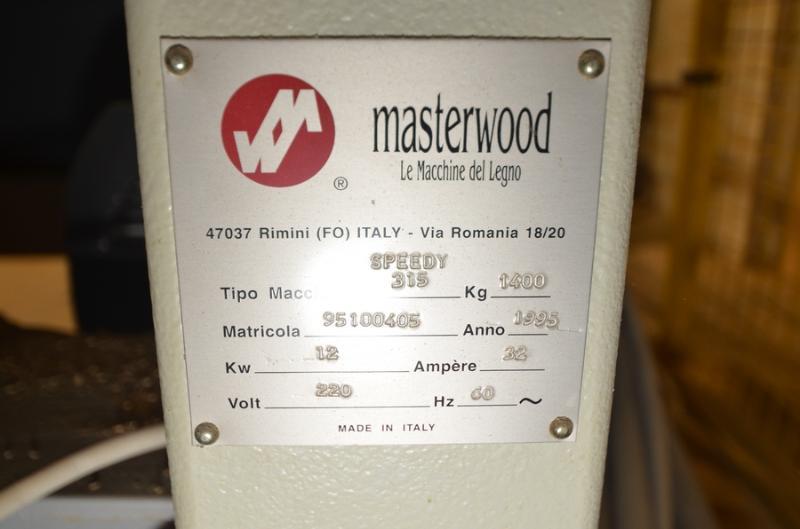

Serial #:
|
|
95100405
|
|
Elect./Voltage:
|
|
220V, 60 Cy, 3 Ph.
|
|
Location:
|
|
PHOENIX, AZ
|
|
Condition:
|
|
Good condition
|
| *Dimensions: | | 176" L x 95" W x 73" H |
| *Weight: | | 3,000 Lbs (estimate) |
|
Loading:
|
|
$ 350 Loading fee
|
|
Comment:
|
|
MASTERWOOD CNC Machining Center!
|
|
Buyer Premium:
|
|
15%
|
Description:
(view full)

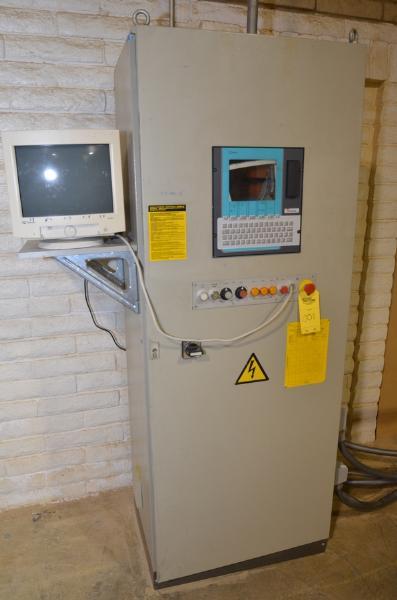

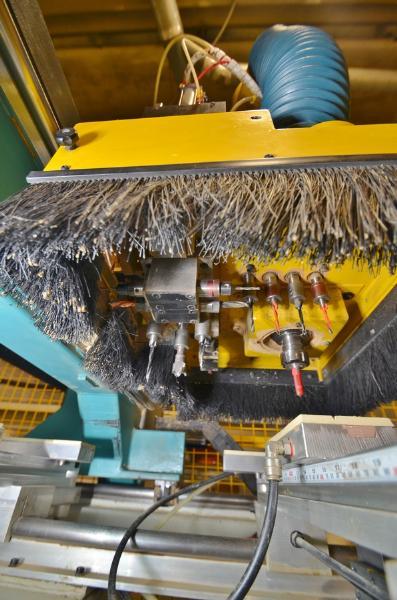

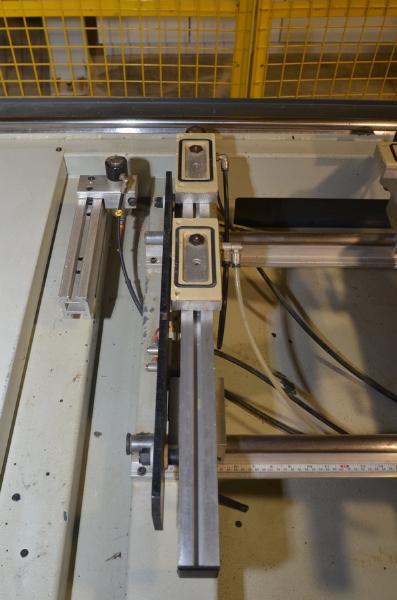

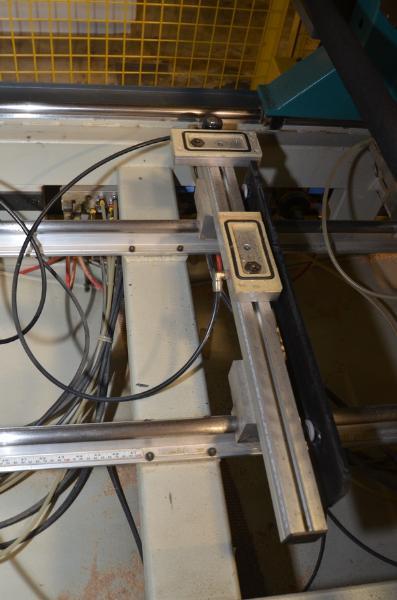

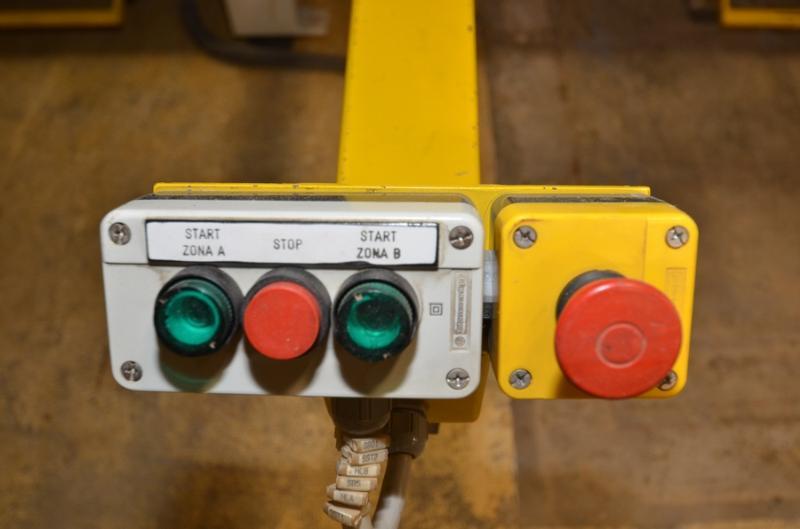

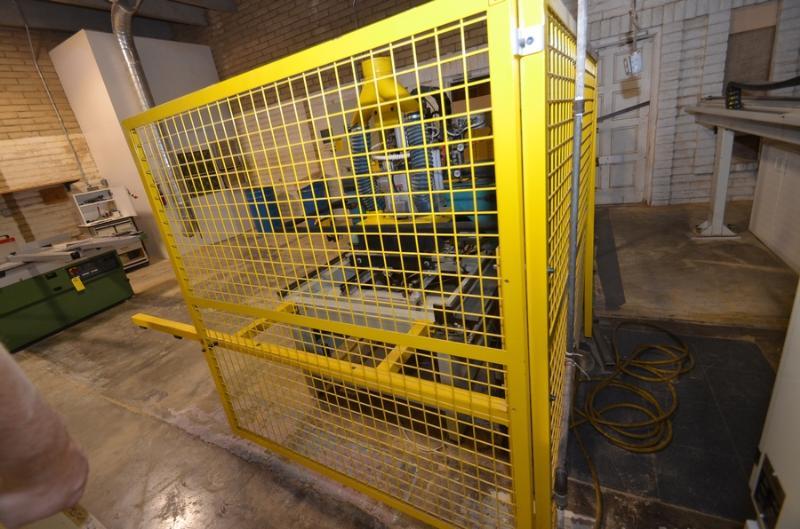

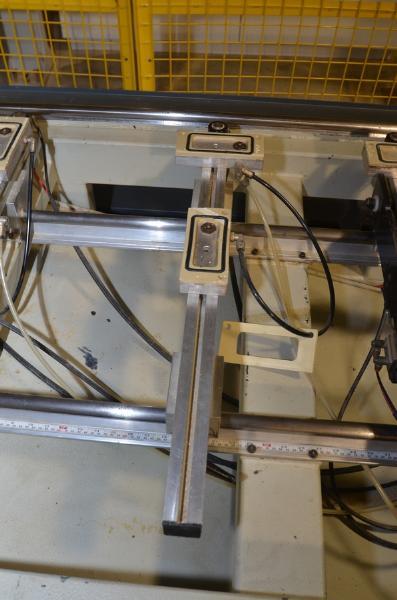

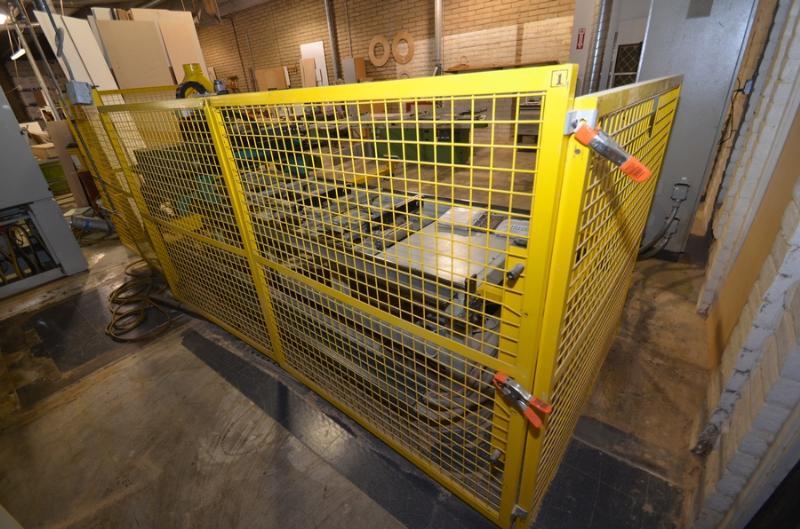

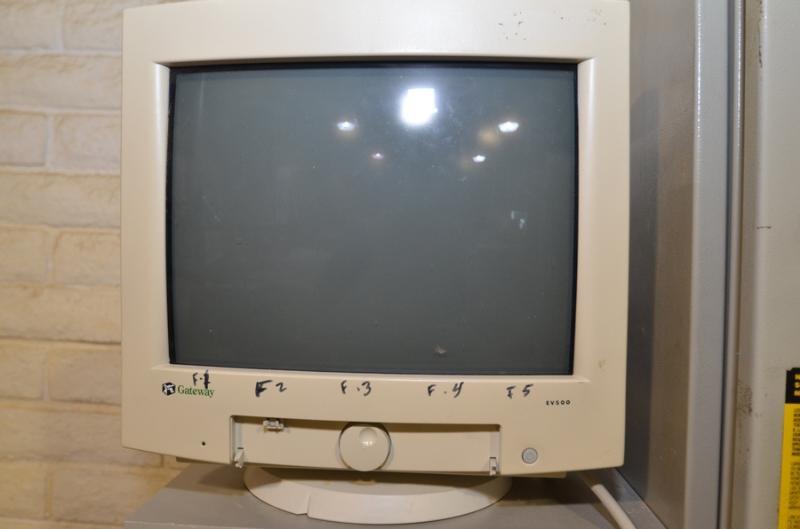

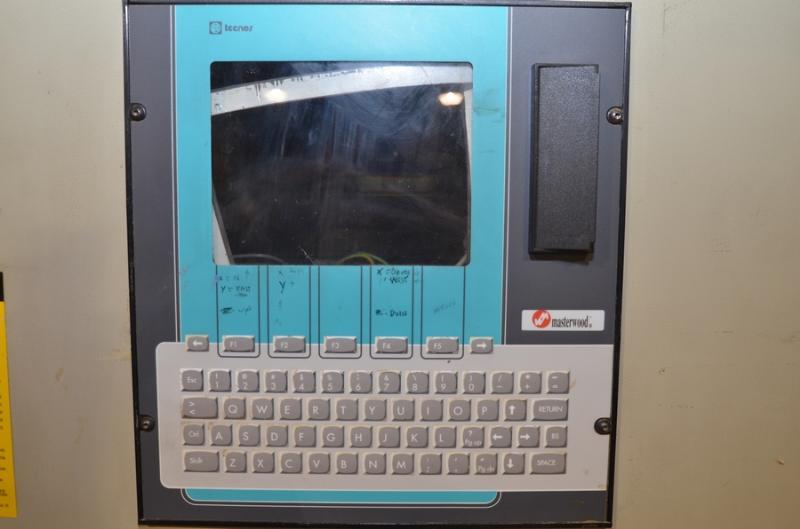

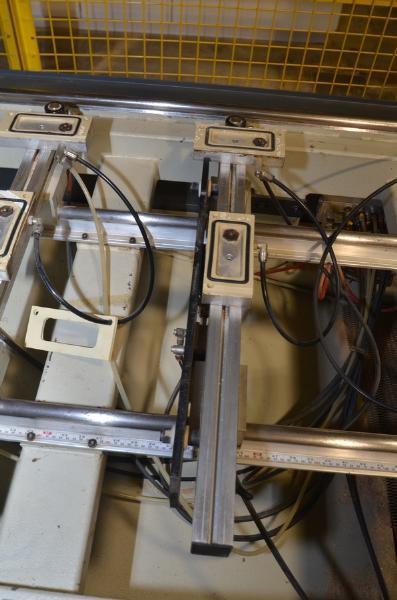

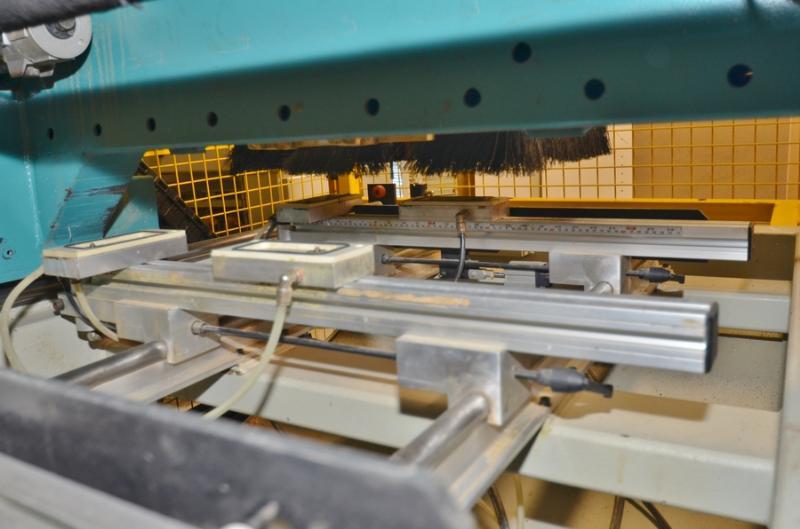

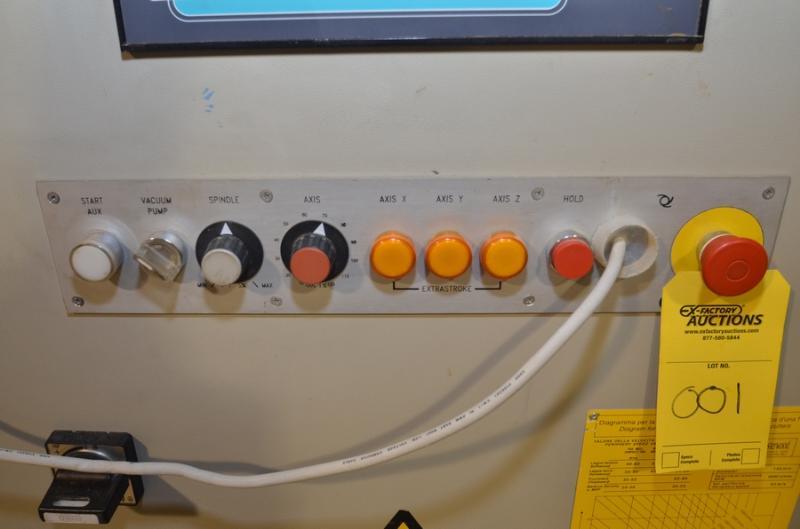

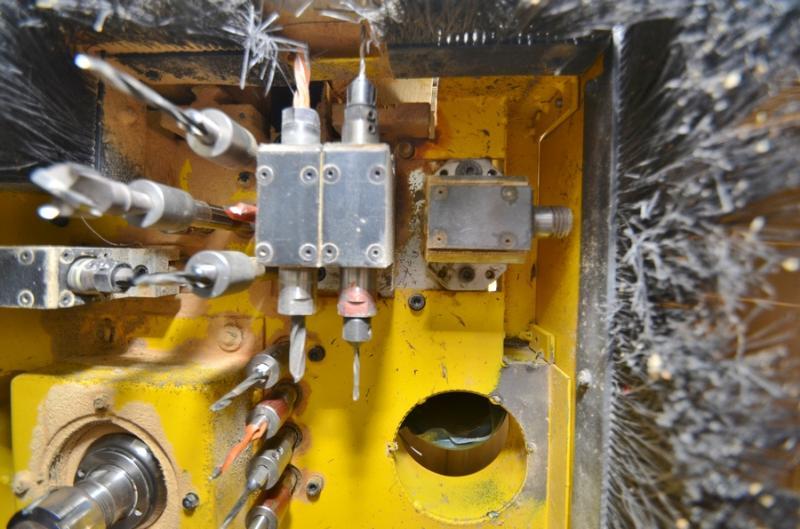

MASTERWOOD CNC Machining CenterWorking cap.: "X" Axis 102" (2,600 mm), "Y" axis 30.5" (780 mm), "Z " axis 2.37" (60 mm)Positioning speed:"X" & "Y" axis 197 FPM (60 MPM)"Z" axis 49 FPM (15 MPM) Work area:(6) Adjustable panel supports, ea. with (2) vacuum pods; (2) independent work zones and mirror-image capability. Boring Unit:2 HP (1.5 kW), 4,000 RPM motor; (9) Independent vertical with (5) spindles in "X" axis & (4) spindles in "Y" axis(6) Horizontal spindles with (2+2) in "X" axis & (1+1) in "Y" axis(1) 2 HP (1.5 kW) - 12,000 RPM "X" axis grooving saw with 120 mm dia. blade (blade not installed) Machining:(1) 4.5 HP (3.4 kW) Colombo "Quick Change" push button vertically mounted router with ISO 30 adaptor, inverter driven at 12,000 - 18,000 RPM, RH rotation. Operator & Machine Control:PC front end controller, Masterwood "MW 310" CNC + Windows operating system; multi-task software with graphic interactive editing & boring optimization program.External Monitor Complete with:(1) 1.5 HP (25 m³/Hr vacuum pump; safety light protection barrier.
|
