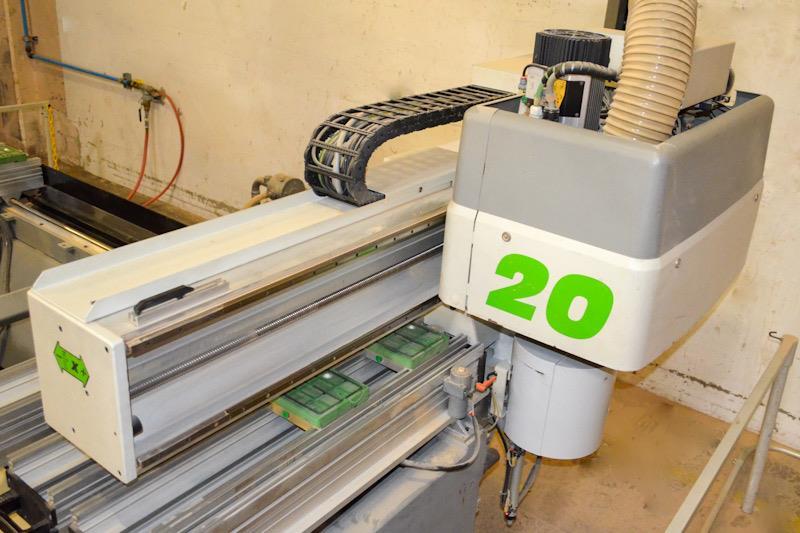

BIESSE ROVER 20 CNC Pod & Rail Machining Center, with ATC & Boring
Specifications:
- Working capacity: X-Axis 2,885 mm (113.58"), Y-Axis 898 mm (35.35") for Boring & 950 mm (37.40") for Routing, Max. panel thickness 65 mm (2.56").
- Positioning speed: X-Axis 75 MPM (246 FPM), Y-Axis 45 MPM (147 FPM), & Z-Axis 15 MPM (49 FPM).

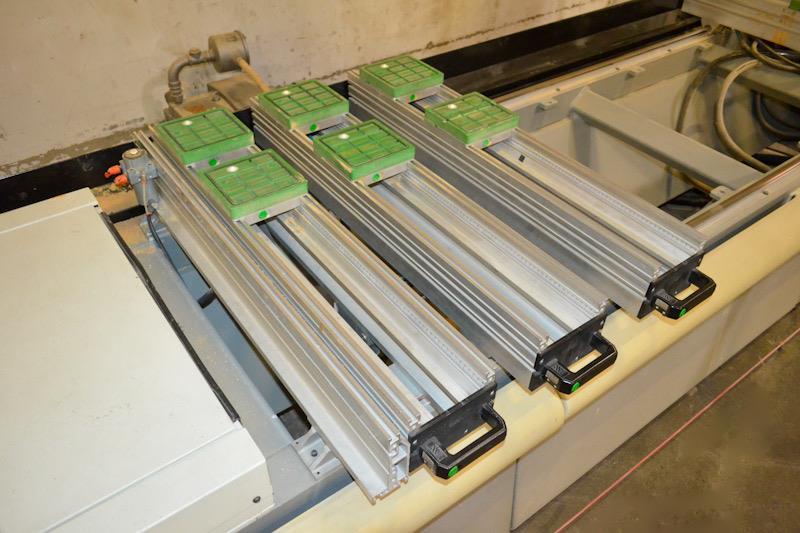

Equipped with: - Work area, with (2) Working zones, (6) Manually-positioned & Pneumatically-locked panel supports, Each with (2) 6” x 6-1/4” Vacuum pods, (6) Backstops/clamps, Left & Right Side stops, All Pneumatic, raised & lowered automatically by start/stop of machining cycle.
- High precision prismatic guides & Ground helical rack on X-Axis, Hardened ground ball screws on Y & Z-Axes.

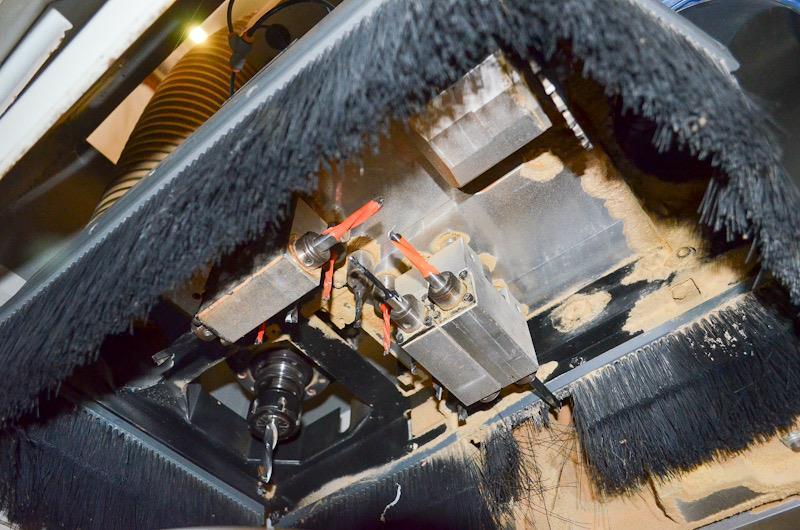

- Boring unit: 1.7 kW (2.3 HP) - 5,135 RPM Motor, Spindle speed 4,000 RPM, (10) Vertical independently-operated spindles with (6) in X-Axis & (4) in Y-Axis, (6) Horizontal spindles with (2+2) in X-Axis & (1+1) in Y-Axis, (1) Grooving saw in X-Axis with 120 mm (4.72") Dia. Blade & Blade speed 5,200 RPM.
- Machining: HSD "ES 919A" 6.6 kW (8.9 HP) Air-cooled electrospindle, with ISO 30 Adapter, RH & LH rotation, Spindle speeds 1,000 - 24,000 RPM, 4-Position Side-mounted automatic tool changer magazine, & 3-Position Rear-mounted on-the-fly Automatic tool changer.
- Control: PC Front-end with 15" Color display, Pendant control, & (2) Foot pedal controls.
Complete with: - BECKER "PICCHIO 2200" 3 kW (4 HP) 130 mbar Vacuum Pump.
Control dimensions: 60" x 36" x 77" H.
Vacuum pump dimensions: 28 x 14 x 24 H.
|
