BRANDT KD 95 EDGEBANDER
Equipment Location: Paterson, NJ
| Lot Closes: |
|
(10/22/2018 2:35 PM EST)
|
|
Event:
|
|
Empire Industries Inc.
|
|
Brand/Model:
|
|
BRANDT "KD 95"
|
|
Year MFG:
|
|
2001
|
|
Machine Type:
|
|
EDGEBANDER
|
|
Serial #:
|
|
0-261-02-7591
|
|
Elect./Voltage:
|
|
208/230 V, 60 Cy, 3 Ph.
|
|
Location:
|
|
Paterson, NJ
|
|
Condition:
|
|
Good condition
|
| *Dimensions: | | 240" L x 58" W x 74" H |
| *Weight: | | 4,840 Lbs (estimate) |
|
Loading:
|
|
Rigger Required
|
|
Comment:
|
|
Still Under Power & Complete with LIGMATECH Return Conveyor!
|
|
Buyer Premium:
|
|
15%
|
Description:
(view full)

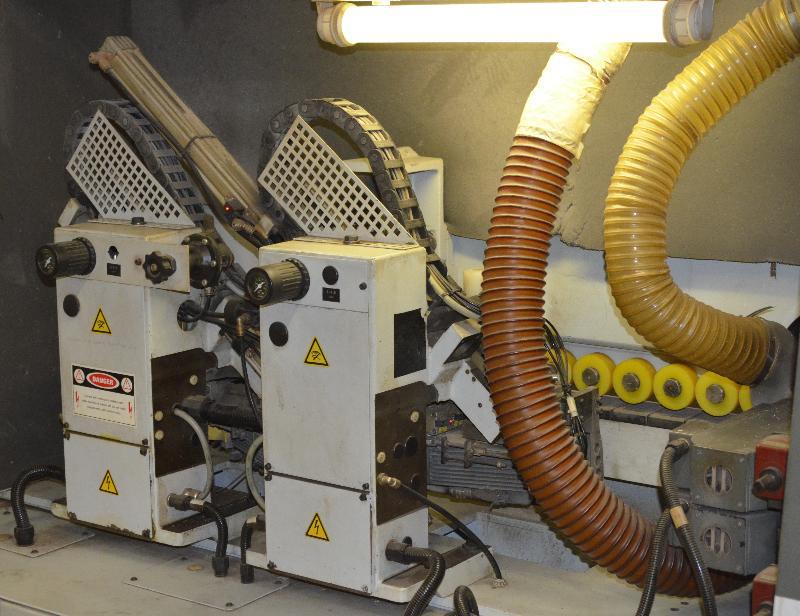

Edgebander with Return Conveyor! Edge thickness .4 - 20 mm (.02” - .79”) Minimum workpiece width 65 mm (2.56”), Minimum workpiece length 160 mm (6.30”), Workpiece thickness 8 - 55 mm (.31” - 2.17”), Feed speeds 15 - 25 MPM (49 - 82 FPM) 32” Diameter Coil table, QUICKMELT Gluing system, Chamfer/straight end trimming unit with (2) .5 kW (3/4 HP) Motors, Rough trimming unit with (2) 1.5 kW (2 HP) Motors, Flush trimming unit with (2) .55 kW (3/4 HP) 12,000 RPM Motors with 0 - 25° swivel, Chamfer/radius scraping unit, Buffing unit Touchpad control with 6” Screen, Electronic line control, Electronic frequency changer with automatic motor braking, Electronic glue temperature control with automatic temperature reduction LIGMATECH “BOOMERANG ZHR 15/40/RE” Return Conveyor, S/N 0-305-03-1901, Working length 300 - 2,500 mm (12” - 98”), Working width 120 - 1000 mm (4-3/4” - 39”), Maximum working thickness 50 mm (2”), Maximum panel weight 50 kg (110 Lbs.), Maximum working speed 8 - 48 MPM (26 - 157 FPM), Touchpad control with 4” 2-Line LCD screen, 3 Ph., 60 Hz., 230 V, 2,028 Lbs. NOTE: STILL UNDER POWER
|
