CANTEK MX-340M EDGEBANDER (COMPACT)
Equipment Location: HUTTO, TX
| Lot Closes: |
|
(7/16/2025 2:50 PM EST)
|
|
Event:
|
|
Hutto Designs
|
|
Brand/Model:
|
|
CANTEK "MX-340M"
|
|
Year MFG:
|
|
2022
|
|
Machine Type:
|
|
EDGEBANDER (COMPACT)
|
|
Serial #:
|
|
22010106EB4M3
|
|
Elect./Voltage:
|
|
230 V, 60 Cy, 3 Ph.
|
|
Location:
|
|
HUTTO, TX
|
|
Condition:
|
|
Very good condition
|
| *Dimensions: | | 116" L x 26" W x 54" H |
| *Weight: | | 1,144 Lbs (estimate) |
|
Loading:
|
|
Rigger Required
|
|
Comment:
|
|
|
|
Buyer Premium:
|
|
15%
|
Description:
(view full)

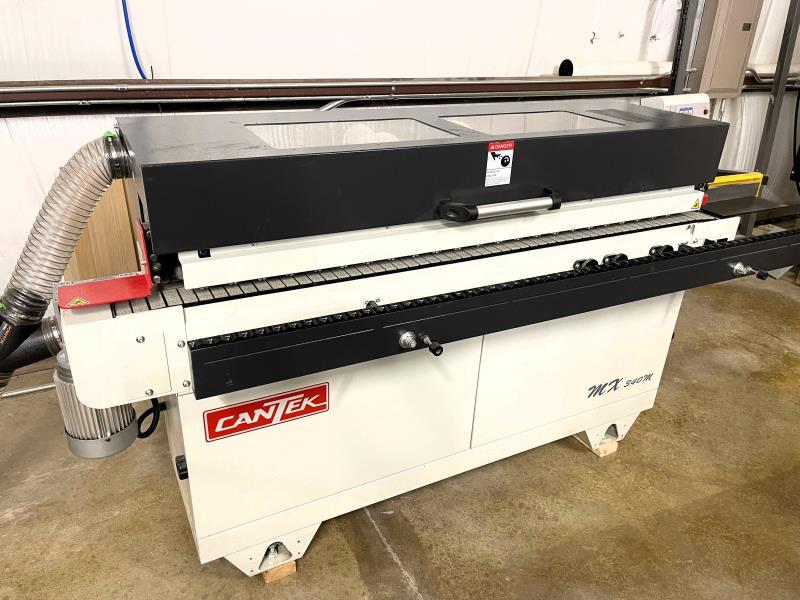

CANTEK MX340M Edgebander
- The MX340 from CANTEK is designed to be a compact, and durable edgebander.
- Equipped with end trimming, flush trimming, PVC scraping, and buffing.

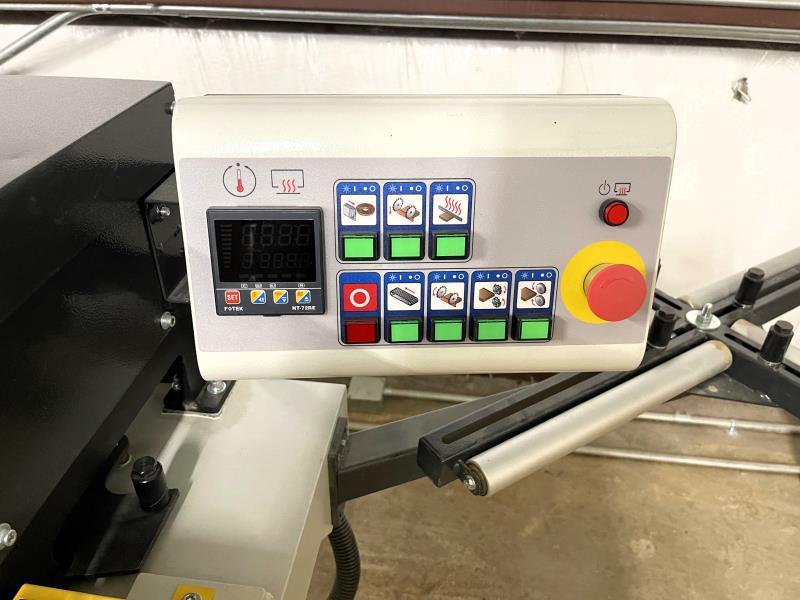

- The CANTEK MX340 Edgebander is operated through a PLC control system with an LED display and keypad.
Specifications: - The MX340 handles panel thickness of 0.315" up to 1.77" (8 mm to 45 mm).
- The coil feed accepts edge banding from 0.4 mm to 3 mm thick, and strip material can be hand-fed.
- Conveyor feed speed is 29.5 FPM (fixed).
Work stations: - Heated infeed fence for optimum glue penetration. Large capacity Teflon-coated glue pot (2.64 Lbs).

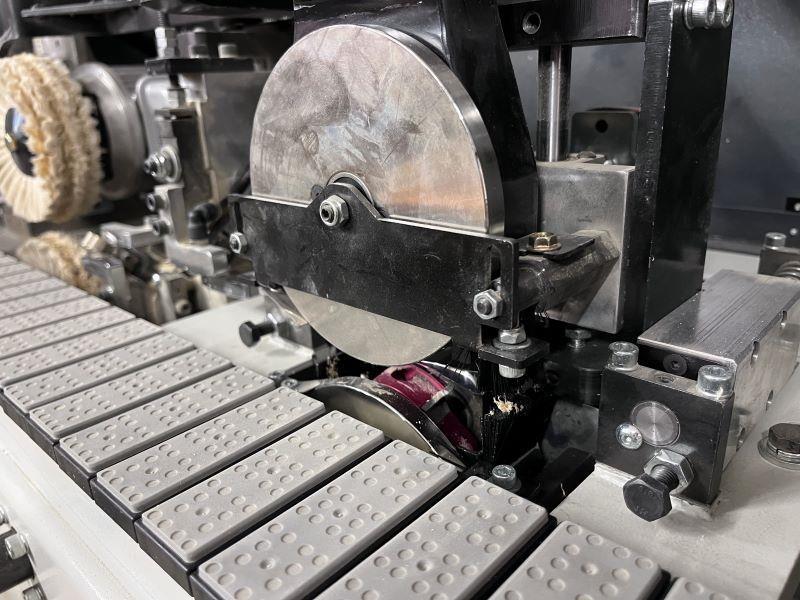

- Pneumatically operated guillotine for up to 3 mm thick banding, followed by spring-loaded double-pressure rollers.
- Single front/rear trimming unit 0.3 HP motor.
- Double top and bottom trimming units (2) 1/2 HP motors.
- Top and bottom scraper/radius scraper.

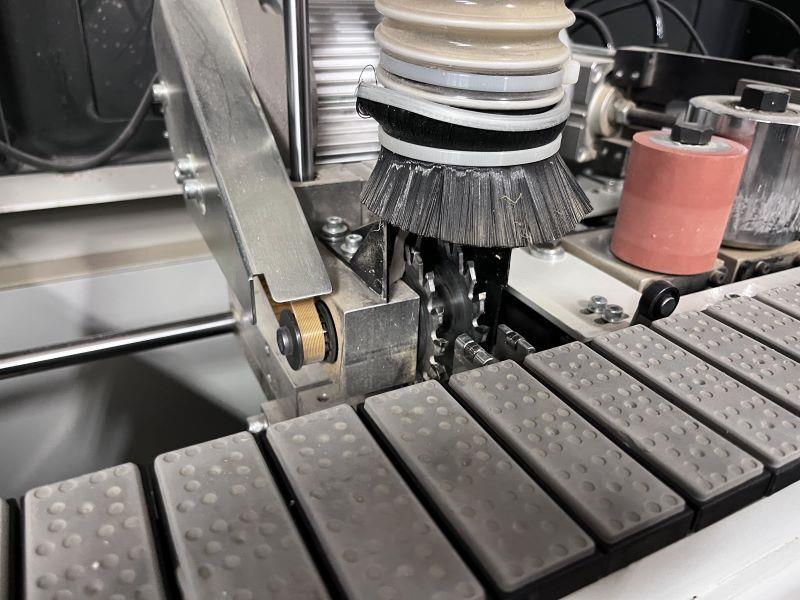

- Top and bottom buffing station (2) 0.16 HP motors.
NOTE: The above specs are taken from literature and thought to be accurate. As always, please take advantage of the inspection period to verify.
***A rigger is required. Buyer is Responsible for breakdown, loading, and removal***
|
