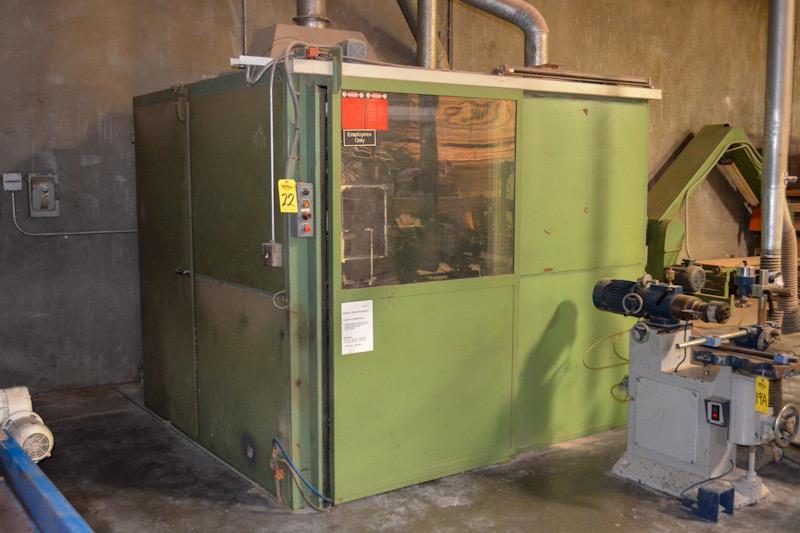

BACCI T4MO COPY LATHE W/INTEGRAL SANDER
Equipment Location: CITY OF INDUSTRY, CA
| Lot Closes: |
|
(6/6/2024 2:55 PM EST)
|
|
Event:
|
|
Trend Manor Furniture & MASHindustries
|
|
Brand/Model:
|
|
BACCI "T4MO"
|
|
Year MFG:
|
|
1988
|
|
Machine Type:
|
|
COPY LATHE W/INTEGRAL SANDER
|
|
Serial #:
|
|
234
|
|
Elect./Voltage:
|
|
220 V, 60 Cy, 3 Ph.
|
|
Location:
|
|
CITY OF INDUSTRY, CA
|
|
Condition:
|
|
Good condition
|
| *Dimensions: | | 94" L x 37" W x 78" H |
| *Weight: | | 3,300 Lbs (estimate) |
|
Loading:
|
|
Rigger Required
|
|
Comment:
|
|
Complete with sanding & enclosure!
|
|
Buyer Premium:
|
|
15%
|
Description:
(view full)
BACCI T4M-O 4-Spindle Asymmetric Copy Lathe, with Sanding
Specifications:
- Distance between spindle centers 170 mm (6.69").
- Max. working height 165 mm (6.50"), Max. copying length 1000 mm (39.37").
- Standard cutter dia. 35 mm (1.38").
- Cutter holder dia. 145 mm (5.71").
- Cutter holder speed 5,300 RPM.
- Spindle speeds 25 & 42 RPM.
- Carriage speeds 75 - 200 mm/Min. (2.95 to 7.87 IPM).
Equipped with: - (4) Duplicating/carving/copy spindles.
Complete with: - (4) 130 mm (5.12") W Copy Belt Sanders for asymmetrical parts, with 130 x 990 mm (5.12" x 38.98") Belts.
- 114" x 92" x 88" H Enclosure.
NOTE: Larger diameters possible by using every second carriage position, ie. (2) heads instead of (4) heads.
Machine weight: 3,330 Lbs.
Enclosure weight: 775 Lbs.
|
BACCI T4M-O 4-Spindle Asymmetric Copy Lathe, with Sanding
Specifications:
- Distance between spindle centers 170 mm (6.69").
- Max. working height 165 mm (6.50"), Max. copying length 1000 mm (39.37").
- Standard cutter dia. 35 mm (1.38").
- Cutter holder dia. 145 mm (5.71").
- Cutter holder speed 5,300 RPM.
- Spindle speeds 25 & 42 RPM.
- Carriage speeds 75 - 200 mm/Min. (2.95 to 7.87 IPM).
Equipped with: - (4) Duplicating/carving/copy spindles.
Complete with: - (4) 130 mm (5.12") W Copy Belt Sanders for asymmetrical parts, with 130 x 990 mm (5.12" x 38.98") Belts.
- 114" x 92" x 88" H Enclosure.
NOTE: Larger diameters possible by using every second carriage position, ie. (2) heads instead of (4) heads.
Machine weight: 3,330 Lbs.
Enclosure weight: 775 Lbs.
