MATTISON 404 STRAIGHT LINE RIP-SAW (SINGLE BLADE)
Equipment Location: CITY OF INDUSTRY, CA
| Lot Closes: |
|
(6/6/2024 2:40 PM EST)
|
|
Event:
|
|
Trend Manor Furniture & MASHindustries
|
|
Brand/Model:
|
|
MATTISON "404"
|
|
Year MFG:
|
|
N/A
|
|
Machine Type:
|
|
STRAIGHT LINE RIP-SAW (SINGLE BLADE)
|
|
Serial #:
|
|
|
|
Elect./Voltage:
|
|
460 V, 60 Cy, 3 Ph.
|
|
Location:
|
|
CITY OF INDUSTRY, CA
|
|
Condition:
|
|
Fair condition
|
| *Dimensions: | | 89" L x 81" W x 56" H |
| *Weight: | | 6,600 Lbs (estimate) |
|
Loading:
|
|
Rigger Required
|
|
Comment:
|
|
|
|
Buyer Premium:
|
|
15%
|
Description:
(view full)
MATTISON 404 14" Straight Line Rip Saw
NOTE: Missing Parts
Specifications:
- Table size 65" x 76-1/2" x 34-1/4" H, Distance from blade to left edge of table 30", Distance from blade to column 24", Rip cap. 24".
- Blade dia. 9" - 14", Arbor dia. 1-1/2".
- Max. thickness 4".
- Min. length: 7-1/2" under (1) roll, 15" under (2) rolls.
- Feed speeds 62, 93, 124, & 186 FPM.

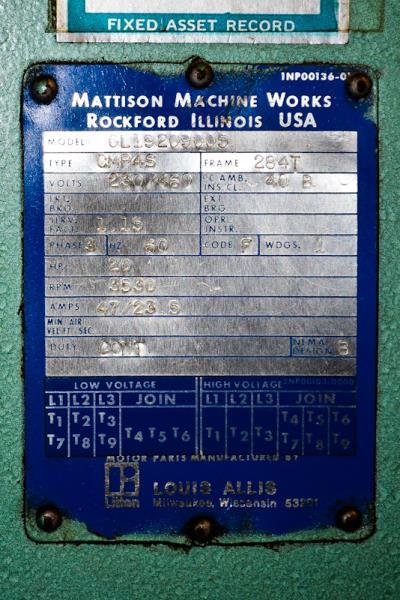

Equipped with: - 20 HP - 3,530 RPM Direct drive arbor motor.

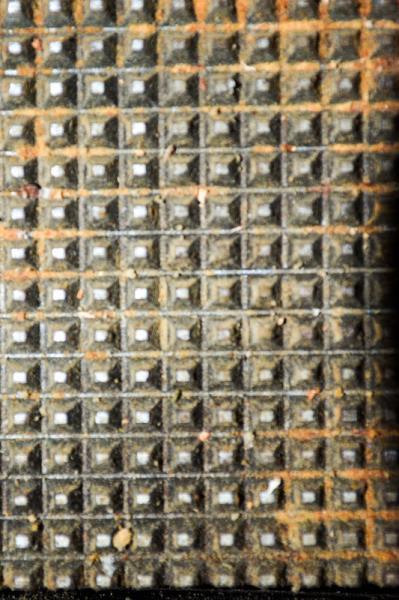

- 6-1/2" W Feed chain, with Automatic lubrication.
- (6) Pairs of 2” W Top hold-down rolls.

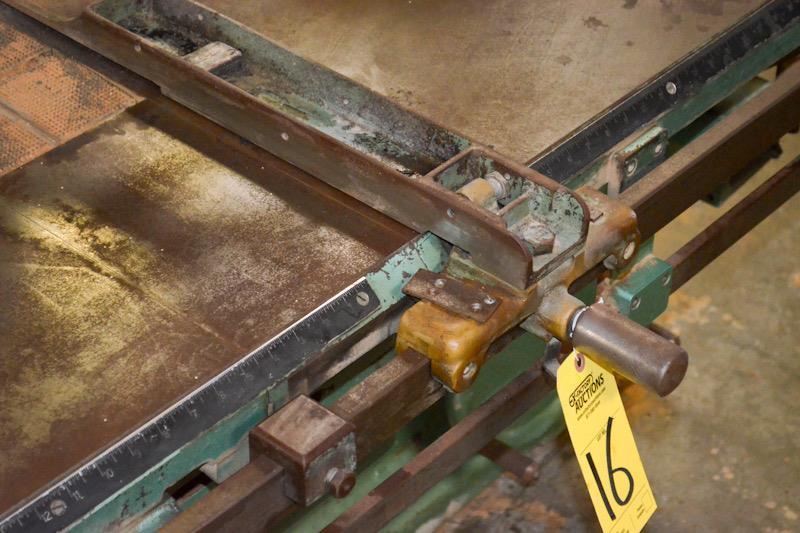

- 24-1/2” x 1-3/4” fence, with 24" Rip cap.
|
MATTISON 404 14" Straight Line Rip Saw
NOTE: Missing Parts
Specifications:
- Table size 65" x 76-1/2" x 34-1/4" H, Distance from blade to left edge of table 30", Distance from blade to column 24", Rip cap. 24".
- Blade dia. 9" - 14", Arbor dia. 1-1/2".
- Max. thickness 4".
- Min. length: 7-1/2" under (1) roll, 15" under (2) rolls.
- Feed speeds 62, 93, 124, & 186 FPM.
Equipped with: - 20 HP - 3,530 RPM Direct drive arbor motor.
- 6-1/2" W Feed chain, with Automatic lubrication.
- (6) Pairs of 2” W Top hold-down rolls.
- 24-1/2” x 1-3/4” fence, with 24" Rip cap.
