PUTSCH EBP-420 EDGEBANDER (COMPACT)
Equipment Location: ZEELAND, MI
| Lot Closes: |
|
(5/1/2024 2:10 PM EST)
|
|
Event:
|
|
New CNC Machining Center, Edgebanders, & More
|
|
Brand/Model:
|
|
PUTSCH "EBP-420"
|
|
Year MFG:
|
|
2017
|
|
Machine Type:
|
|
EDGEBANDER (COMPACT)
|
|
Serial #:
|
|
17.450.008
|
|
Elect./Voltage:
|
|
230 V, 60 Cy, 3 Ph.
|
|
Location:
|
|
ZEELAND, MI
|
|
Condition:
|
|
New, Never Used
|
| *Dimensions: | | 86" L x 44" W x 64" H |
| *Weight: | | 990 Lbs (estimate) |
|
Loading:
|
|
Seller Loading
|
|
Comment:
|
|
New "Never Used" – Buy for a fraction of a new one!
|
|
Buyer Premium:
|
|
15%
|
Description:
(view full)
CASADEI (PUTSCH-BRANDED) EBP-420 Compact Edgebander – New, Never Used!
Specifications:
- Edgebanding thickness: 0.4 - 3 mm (0.02" - 0.12") Coil, 0.4 - 5 mm (0.02" - 0.20") Strip with Manual Feed.
- Max. coil dia. 800 mm (31.50").
- Panel thickness 8 - 45 mm (0.31" - 1.77"), Min. panel width 95 mm (3.74"), Min. panel length 210 mm (8.27").
- Feed speed 7 MPM (22 FPM).
Equipped with: - 1 kg (2.2 Lbs.) Cap. Teflon-coated glue pot, with (6) Heating elements, & Thermostatic glue control with Automatic standby & Temperature display.
- Pneumatically-operated guillotine.
- Pressure section.
- Feed chain pads, with Replaceable rubberized surface inserts.
- Rubberized hold-down rollers.
- PLC Control, with Backlit LCD display & Touchpad.
- Safety enclosure.

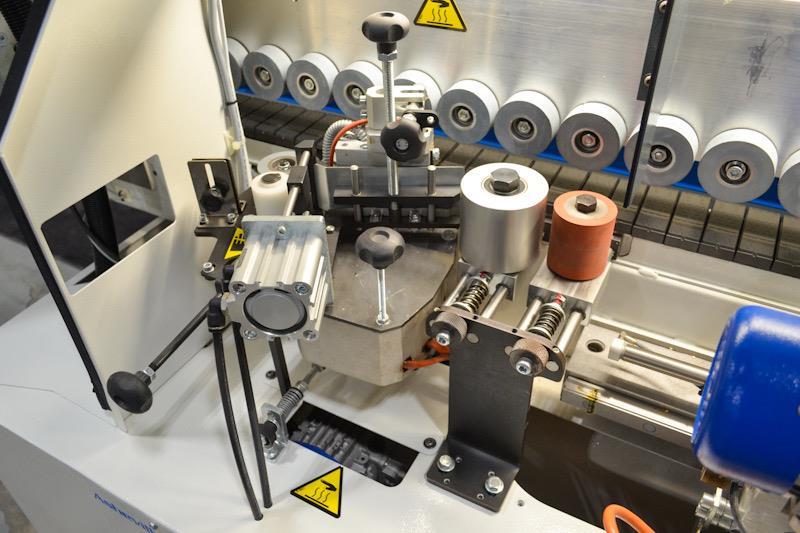

Workstations: - Front & Rear End Trim Unit, with 0.18 kW (1/4 HP) - 2,700 RPM Motor.
- Top & Bottom Flush Trim Unit, with (2) 0.22 kW (0.3 HP) - 12,000 RPM - 200 Hz Motors, 75 mm (2.95") Dia. Cutterheads, & 2 - 3 mm (0.08" - .012") Radii.
- Edge Scraping Unit, with Box.
- Top & Bottom Scraping Unit (Flush Trim Unit), with 120 mm (4.72") Vertical disc copier.
Complete with: - Use & Maintenance Manual.
|
CASADEI (PUTSCH-BRANDED) EBP-420 Compact Edgebander – New, Never Used!
Specifications:
- Edgebanding thickness: 0.4 - 3 mm (0.02" - 0.12") Coil, 0.4 - 5 mm (0.02" - 0.20") Strip with Manual Feed.
- Max. coil dia. 800 mm (31.50").
- Panel thickness 8 - 45 mm (0.31" - 1.77"), Min. panel width 95 mm (3.74"), Min. panel length 210 mm (8.27").
- Feed speed 7 MPM (22 FPM).
Equipped with: - 1 kg (2.2 Lbs.) Cap. Teflon-coated glue pot, with (6) Heating elements, & Thermostatic glue control with Automatic standby & Temperature display.
- Pneumatically-operated guillotine.
- Pressure section.
- Feed chain pads, with Replaceable rubberized surface inserts.
- Rubberized hold-down rollers.
- PLC Control, with Backlit LCD display & Touchpad.
- Safety enclosure.
Workstations: - Front & Rear End Trim Unit, with 0.18 kW (1/4 HP) - 2,700 RPM Motor.
- Top & Bottom Flush Trim Unit, with (2) 0.22 kW (0.3 HP) - 12,000 RPM - 200 Hz Motors, 75 mm (2.95") Dia. Cutterheads, & 2 - 3 mm (0.08" - .012") Radii.
- Edge Scraping Unit, with Box.
- Top & Bottom Scraping Unit (Flush Trim Unit), with 120 mm (4.72") Vertical disc copier.
Complete with: - Use & Maintenance Manual.
