PUTSCH EBP-320 EDGEBANDER (COMPACT)
Equipment Location: FLETCHER, NC
| Lot Closes: |
|
(5/1/2024 3:13 PM EST)
|
|
Event:
|
|
New CNC Machining Center, Edgebanders, & More
|
|
Brand/Model:
|
|
PUTSCH "EBP-320"
|
|
Year MFG:
|
|
2018
|
|
Machine Type:
|
|
EDGEBANDER (COMPACT)
|
|
Serial #:
|
|
18.262.018
|
|
Elect./Voltage:
|
|
230 V, 60 Cy, 3 Ph.
|
|
Location:
|
|
FLETCHER, NC
|
|
Condition:
|
|
New, Never Used
|
| *Dimensions: | | 81" L x 49" W x 52" H |
| *Weight: | | 550 Lbs (estimate) |
|
Loading:
|
|
Seller Loading
|
|
Comment:
|
|
New "Never Used" – Buy for a fraction of a new one!
|
|
Buyer Premium:
|
|
15%
|
Description:
(view full)

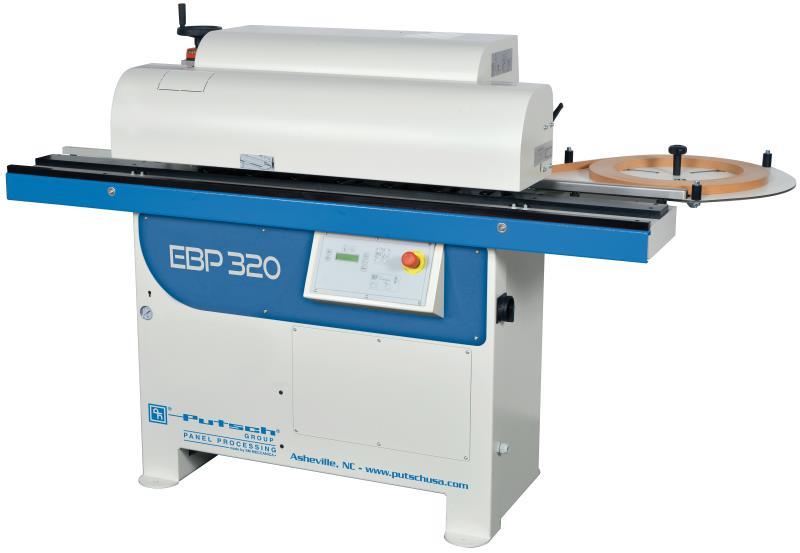

CASADEI (PUTSCH-BRANDED) EBP-320 Compact Edgebander, 3-Phase – New, Never Used!
"BUY NOW" NOTE: This machine is available to purchase prior to the closing of the Auction. Please contact Kevin Welker at 877-580-5844 ext. 316 for "Buy Now" price.
Specifications:
- Edgebanding thickness 0.4 to 2 mm (0.02" - 0.08").
- Max. coil dia. 600 mm (23.62").
- Panel thickness 10 - 45 mm (0.39" - 1.77"), Min. panel width 110 mm (4.33"), Min. panel length 220 mm (8.66").
- Feed speed 7 MPM (22 FPM).
Equipped with: - 3-Position Infeed fence, 0 mm, 1 mm, & 2 mm.
- 1 kg (2.2 Lbs.) Cap. Teflon-coated glue pot, (6) Heating elements, & Thermostatic glue control with Automatic standby & Temperature display.
- Pneumatic guillotine.
- Pressure section, (1) Silicone roll & (2) Nylon rolls.
- 0.8 HP Feed belt motor.
- PLC Control, with Backlit LCD display & Touchpad.
- Sound enclosure, Outrigger panel support.
Workstations: - Front & Rear End Trim Unit.
- Top & Bottom Flush Trim Unit, with (2) 0.37" kW (1/2 HP) - 10,300 RPM Motors, Straight or Bevel cutters, & 75 mm (2.95") Dia. Cutterheads with Knife inserts for 2 mm (0.08") Radius or 15° Bevel.
|
CASADEI (PUTSCH-BRANDED) EBP-320 Compact Edgebander, 3-Phase – New, Never Used!
"BUY NOW" NOTE: This machine is available to purchase prior to the closing of the Auction. Please contact Kevin Welker at 877-580-5844 ext. 316 for "Buy Now" price.
Specifications:
- Edgebanding thickness 0.4 to 2 mm (0.02" - 0.08").
- Max. coil dia. 600 mm (23.62").
- Panel thickness 10 - 45 mm (0.39" - 1.77"), Min. panel width 110 mm (4.33"), Min. panel length 220 mm (8.66").
- Feed speed 7 MPM (22 FPM).
Equipped with: - 3-Position Infeed fence, 0 mm, 1 mm, & 2 mm.
- 1 kg (2.2 Lbs.) Cap. Teflon-coated glue pot, (6) Heating elements, & Thermostatic glue control with Automatic standby & Temperature display.
- Pneumatic guillotine.
- Pressure section, (1) Silicone roll & (2) Nylon rolls.
- 0.8 HP Feed belt motor.
- PLC Control, with Backlit LCD display & Touchpad.
- Sound enclosure, Outrigger panel support.
Workstations: - Front & Rear End Trim Unit.
- Top & Bottom Flush Trim Unit, with (2) 0.37" kW (1/2 HP) - 10,300 RPM Motors, Straight or Bevel cutters, & 75 mm (2.95") Dia. Cutterheads with Knife inserts for 2 mm (0.08") Radius or 15° Bevel.
