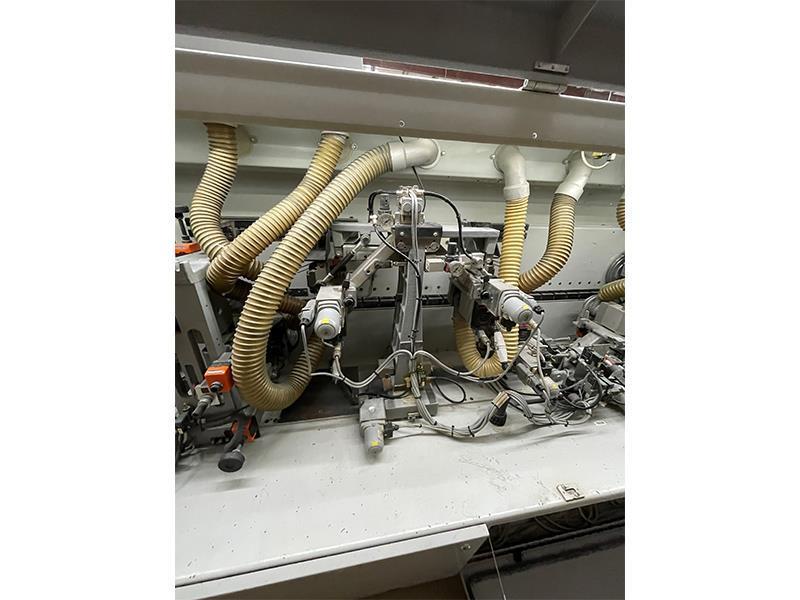

HOLZ-HER 1488 TRIATHLON EDGEBANDER W/PRE-MILLING & CORNER ROUNDING:
Specifications:
Working Capacity:
- Max. 1" (25 mm) solid wood banding, thin PVC, Veneer, HPL & 3 mm PVC cap., 60 mm (2.37") max. panel thickness and 140 mm (5-1/2") min. panel length.
Front-End Equipped With: - Pre-Milling Unit 1961, (2) 2.2 KW (3.0 HP), 12,000 RPM (1) jump spindle with digital indicators for positioning.
- Gluing System 1907, "ULTRA-GRANUPRESS" system w/flat glue-nozzle only 3° angle of approach ideal for solid wood edgebanding & "quick melt" feature.
- Automatic Edge-Magazine 1901, for coil, strip & solid wood edgebanding with TRACTOR-BELT feed system, with Heavy Duty guillotine for 4 mm PVC.
- Pressure Section 1926M, with (3) large dia. rollers, each w/individual pneumatic plunge and pressure control; Programmable with servo motor positioning, powered 1st roller with electronic speed control synchronized with chain feed speed.
Edgebanding Workstations: - End Trimming Unit 1819, (2) 0.75 HP - 6,800 RPM ea. "HF" motors with "Uni-Point Swivel", quick change from flush to 0° - 15° bevel programmable from operator panel, w/servo controls.
- Flush Trimming Unit 1962, (2) 2.6 HP - 12,000 RPM - 200 Cy HF motors), w/servo controls.
- Fine/Bevel/Radius Trimming Unit 1966 (2) 1.5 HP- 12,000 RPM - 200 Cy HF motors), bevels 0° - 45°, w/servo controls + SIKO digital readouts.
- Corner Rounding Unit 1933, 1934, (2) "HF" top motors & (2) HF bottom motors for trimming leading-and-trailing upper-and-lower edge/corners; trailing edge (4 x 0.75 HP - 12,000 RPM - 300 Cy HF motors), 2 mm or 3 mm radius cap.
- Profile Scraper Unit 1927, "Super Duty" for positively smooth finishing thick PVC for radius range from 2 - 5 mm, vertical & horizontal tracing wheels, positioning enabled through (1) servo motor function from control panel, as well as SIKO readouts for easy setup.
- Flat Glue Scraper 1964, top & bottom for removal of potential glue squeeze-out w/air pressure nozzels to prevent shavings build-up.
- Buffing Unit 1851, (2) lateral buffing wheel positioning motors with Oscillating & Programmable Jump action for cleaning & polishing of edges (two 0.25 HP - 3,600 RPM motors), tilts 0° - 5°, w/servo controls.
Equipped with and Includes: - PPC 231 Controller with 15" LCD color screen, 90% of all set-ups can be adjusted from the control panel, programmable for a large variety of edges like solid lumber, veneer strips or coils, hpl, thin & thick pvc. Line control so there are no mechanical limit switches along the chain track.
- Variable feed speed from 8 - 20 MPM (26 - 65 FPM), panel overhang beyond chain 35 mm (1.38"); features automatic track pad lubrication.
- Factory Documentation, Operating and Spare Parts Manuals.
NOTE: The above specs are taken from literature and considered accurate. As always please take advantage of the inspection period to verify.
|
