HOLZ-HER 1327 SPRINT EDGEBANDER
Equipment Location: AUBURN, AL
| Lot Closes: |
|
(5/30/2024 2:20 PM EST)
|
|
Event:
|
|
HOLZ-HER Edgebanders
|
|
Brand/Model:
|
|
HOLZ-HER "1327 SPRINT"
|
|
Year MFG:
|
|
2015
|
|
Machine Type:
|
|
EDGEBANDER
|
|
Serial #:
|
|
235/1-511
|
|
Elect./Voltage:
|
|
230 V, 60 Cy, 3 Ph.
|
|
Location:
|
|
AUBURN, AL
|
|
Condition:
|
|
Good condition
|
| *Dimensions: | | 210" L x 63" W x 67" H |
| *Weight: | | 3,000 Lbs (estimate) |
|
Loading:
|
|
Rigger Required
|
|
Comment:
|
|
|
|
Buyer Premium:
|
|
15%
|
Description:
(view full)
HOLZ-HER 1327 SPRINT CLASSIC SPECIAL EDGEBANDER + Glu Jet EVA / PUR Hybrid Technology Gluing Systems: Note: This is a "SPECIAL MACHINE for THIN TAPE ONLY"
Specifications:
- Features the HOLZ-HER Patented Dual "GLU-JET" EVA & PÜR Zero Joint Technology System
- Edgebanding Capacity: edge thickness min./max. 0.4 - 8 mm (0.02 - 0.31"), coiled material 0.4 - 3 mm (0.016 - 0.157"); Work Piece thickness 6 - 60 mm (0.23" - 2.36"), workpiece width min. of 65 mm (2.56"); Workpiece length min. 160 mm (6.29"). Variable Feed speed 10 - 18 MPM (33 - 59 FPM).
Machine In-Feed: - "OPEN SPACE" for Pre-Milling Station "1802": (2) 2.0 KW (2.68 HP) - 12,000 RPM motors; Note: This machine is not equipped with the Pre-Milling Station, but it can be added.

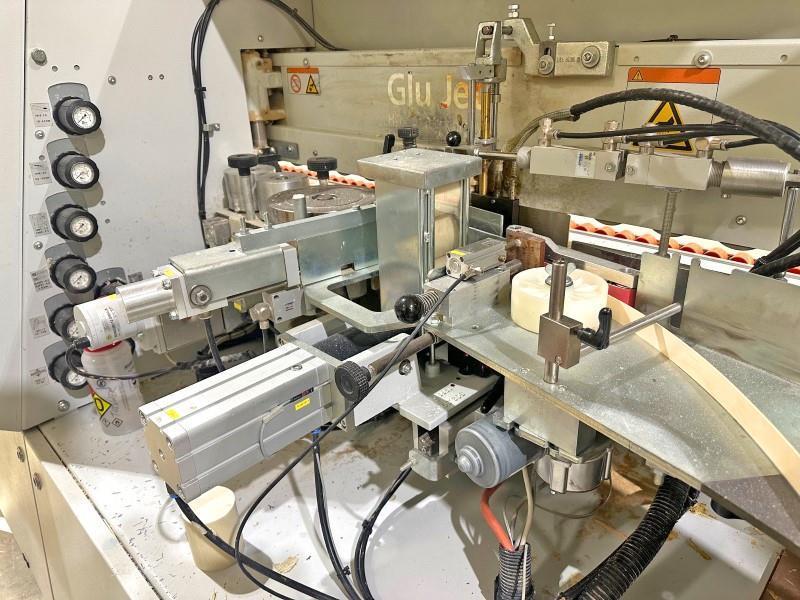

Edge Magazine "1903": - For coil and strip processing, utilizing motion detector to ensure accurate, trouble-free positioning of edge material; Exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety, 3° Approach angle allows easy feeding of solid wood edges.
Pressure Section "1913 Mot": - 1-Axis Servo controlled adjustment of the edge thickness
- Pneumatic Plunge controlled pressure section with (1) large driven roller and (2) cantered idle rollers
Gluing System "GJ301Auto": - Glue Jet Hybrid Technology, Processes "EVA" or "PUR" Glue in Cartridge or Granulate Form; Motorized programmable glue nozzle (upper glue line) height positioning. Approx. 3-Minute Heat Up Time.
Workstations: - End Trimming Unit "1918P": Front & rear, 2 x 0.45 KW (0.6 HP) - 9,000 RPM motor each, for Straight or Chamfer trimming with "UNI-POINT Axis for "PCS" pneumatic change-over/swiveling up to 10° bevel.
Combination Trimming Unit "1827": - Top & bottom, 2 x 0.65 KW (0.87 HP) - 12,000 RPM each motor, for T&B Flush/Bevel/Radius trimming. "ProLock" Clamping System for Rapid Tool Change. Manual Edge Radius adjustment up to 3 mm & chamfer adjustment up to 15° with a max. edge thickness of 6 mm. "OPEN SPACE" for 2nd T&B Trimming Unit; Note: This machine is not equipped with the 2nd T&B Trimming Unit, but it can be added.
- "OPEN SPACE" for Profile Scraping Unit "1929P"; Note: This machine is not equipped with the Profile Scraping Unit "1929P", but it can be added.
- "OPEN SPACE" for Finish Scraping 1964; Note: This machine is not equipped with the Finish Scraping 1964, but it can be added.
- "OPEN SPACE" For Buffing Unit 1940; Note: This machine is not equipped with the Buffing Unit 1940, but it can be added.
Operator Interface: - Holz-Her "PPC 231 Power-PC + "Windows-Like operating system. 15" SVGA Flat "Touch Screen" control. USB connection & Ethernet Network connection ready. Programs can be easily created and recalled at will. Graphic interface makes programming easy, icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters that can be programmed; Edgebander can be operated manually when required, without the necessity to write a program.
Complete with: - Motorized Top Pressure Beam
- Outboard panel support
- Manual Central Lubrication of the Transport Chain
- Sound enclosure w/interior lights over enclosed workstations of the machine
- Used tooling on the stations
- Machine documentation.
- Actual Model is HOLZ-HER 1327 SPRINT CLASSIC SPECIAL.
NOTE: The above specs are taken from literature and considered accurate. As always please take advantage of the inspection period to verify.
|
