HOMAG BOF 211 FLAT TABLE MACHINE (ATC, BORING, C-AXIS)
Equipment Location: REGINA, SK
| Lot Closes: |
|
(12/31/2025 2:00 PM EST)
|
|
Event:
|
|
Premier Custom Kitchen & Bathroom Cabinet Mfr.
|
|
Brand/Model:
|
|
HOMAG "BOF 211"
|
|
Year MFG:
|
|
2011
|
|
Machine Type:
|
|
FLAT TABLE MACHINE (ATC, BORING, C-AXIS)
|
|
Serial #:
|
|
0-201-09-7093
|
|
Elect./Voltage:
|
|
480 V, 60 Cy, 3 Ph.
|
|
Location:
|
|
REGINA, SK
|
|
Value New:
|
|
$ 235,000
|
|
Negotiable Price:
|
|
Item Sold
|
|
Condition:
|
|
Very good condition
|
| *Dimensions: | | 310" L x 210" W x 130" H |
| *Weight: | | 15,000 Lbs (estimate) |
|
Loading:
|
|
Rigger Required
|
|
Comment:
|
|
Includes ATC, Boring, and C-Axis!
|
Description:
(view full)
HOMAG PROFILINE BOF 211/37/15/R FLAT TABLE MACHINE (ATC, BORING, C-AXIS) + LOADING/UNLOADING:"
- Specifications:
"LOADED" 5' x 12' Flat table machine. - Working Area
X-Axis 3,700 mm (145.67"); Y-Axis 1,550 mm (61.02"); Z-Axis stroke 535 mm (21.06"); max. material thickness 210 mm (8.27"). - Positioning Speed
X & Y-Axis 80 MPM (262 FPM); Z-Axis 30 MPM (98 FPM). - Worktable
Table size 3,700 mm x 1,610 mm x 870 mm H (145.67" x 63.39" x 34-1/4").
(4) Front rails; (1) right-hand & (1) left-hand corner pneumatic location pins.
User-Friendly "MATRIX" grooved aluminum grid vacuum table with: (2) Vacuum work zones with foot pedal controls; table zones can be used independently or together for full table area.
Table accepts: Spoil board, gasket material, or vacuum pods. - Boring Unit
(1) 1.5 kW (2 HP) Motor; (9) independent vertical spindles with: (5) In X-Axis & (4) in Y-Axis; variable spindle speeds from 4,500 - 7,500 RPM; (4) horizontal spindles with (1 + 1) in X-Axis & (1 + 1) in Y-Axis. - Machining
(1) 12 kW (16 HP) Liquid cooled electro-spindle router with: "HSK 63F" Adapter; variable spindle speeds from 1,000 - 24,000 RPM.
(1) CNC Controlled C-Axis for 360° horizontal processing.
(1) 12-Position ride along automatic tool changer on back of head for "on-the-fly" tool changing. - Operator & Machine Control
"powerControl" CNC Control with: MICROSOFT "Windows" + "WoodWOP 5.0" Operating System.

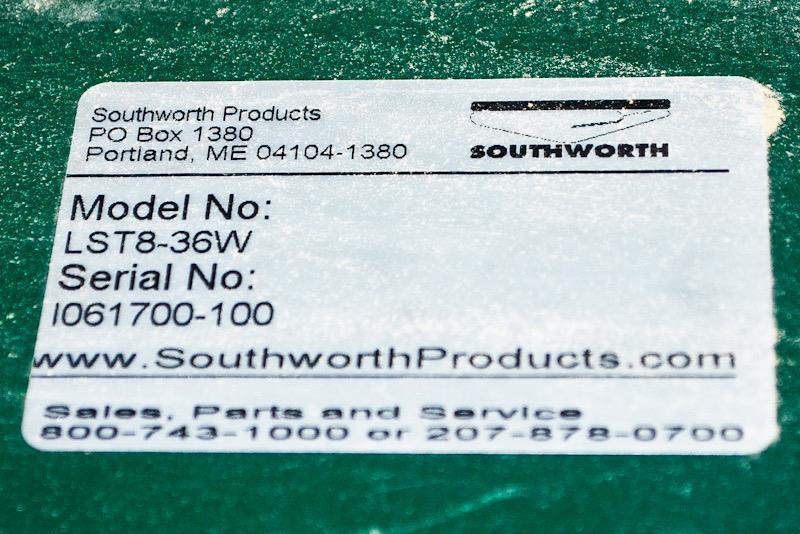

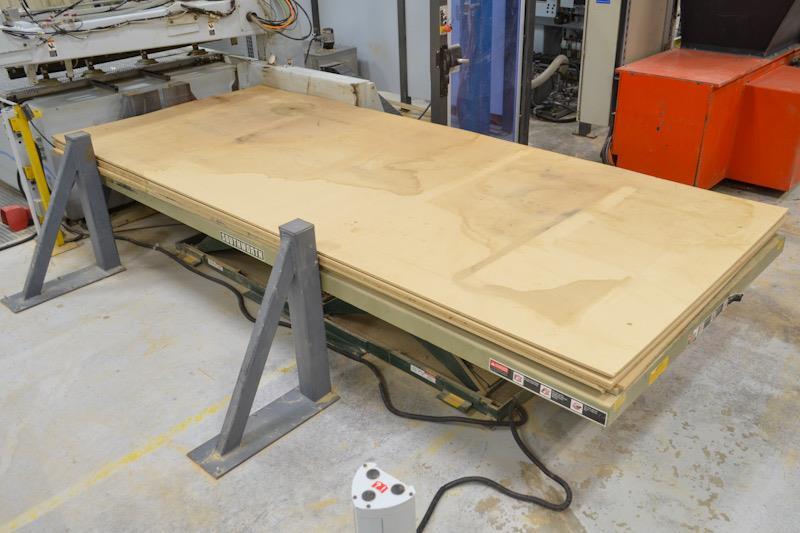

Includes: 17" LCD Display, Ethernet, RS-232, & USB ports, remote pendant control, (3) foot pedal controls. - Complete with: SOUTHWORTH "LST8-36W" 8,000 Lbs Cap. extra wide Infeed Electric/Hydraulic Tandem Scissor Lift Platform; S/N I061700-100; platform size 60" x 144", lowered height 6-3/4", raised height 42-3/4". Vacuum Arm with: (4) 6-1/2” Dia. Vacuum pads; 61” W x 13’ L outfeed motorized belt conveyor; 2011 DEKKER "VMAX VMX0553KA1-00 40 HP oil sealed liquid ring Vacuum Pump, S/N M21128; with nominal cap. 550 CFM; max. vacuum pressure 29" Hg.; approx. oil capacity (17) gallons; minimum continuous operation 10,000 Hrs; max. noise level (at 3 ft.) 78 dBA; 40 HP - 1,775 RPM TEFC direct drive motor; "ONDEK" Touchpad Controller with LCD display; (10,918) run Hrs & dimensions: 90" x 27" x 108"; light curtain; 5’ x 17’ pressure sensitive Safety Mat.
Machine Dimensions with Infeed & Outfeed: 478" x 142" x 117" H.
Control Cabinet Dimensions: 50 x 32 x 96 H.
CURRENCY NOTE: Negotiable Price is listed in U.S. Dollars.
|
