KUFO GY-610S TWO SIDED PLANER
Equipment Location: Carson, CA
| Lot Closes: |
|
(3/10/2021 3:50 PM EST)
|
|
Event:
|
|
Los Angeles Carvings
|
|
Brand/Model:
|
|
KUFO "GY-610S"
|
|
Year MFG:
|
|
N/A
|
|
Machine Type:
|
|
TWO SIDED PLANER
|
|
Serial #:
|
|
|
|
Elect./Voltage:
|
|

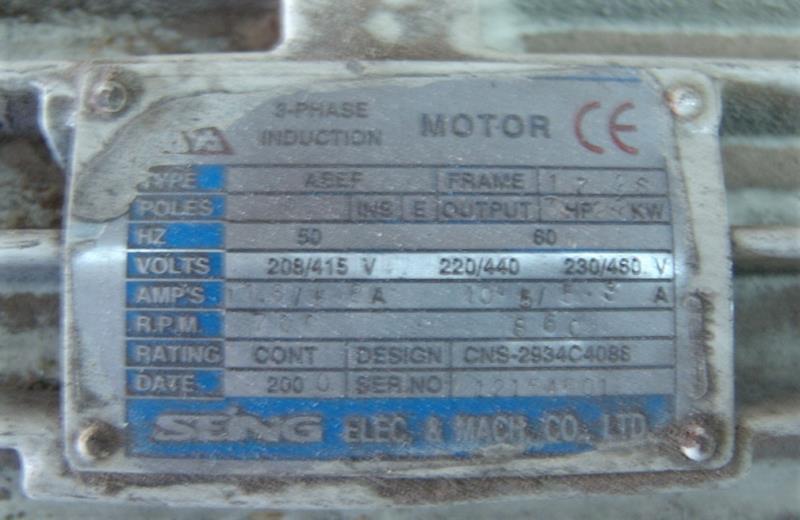

220/440 V, 60 Cy, 3 Ph.
|
|
Location:
|
|
Carson, CA
|
|
Condition:
|
|
Good condition
|
| *Dimensions: | | 108" L x 80" W x 67" H |
| *Weight: | | 8,500 Lbs (estimate) |
|
Loading:
|
|
Rigger Required
|
|
Comment:
|
|
Though enough to handle demanding production schedules.
|
|
Buyer Premium:
|
|
15%
|
Description:
(view full)

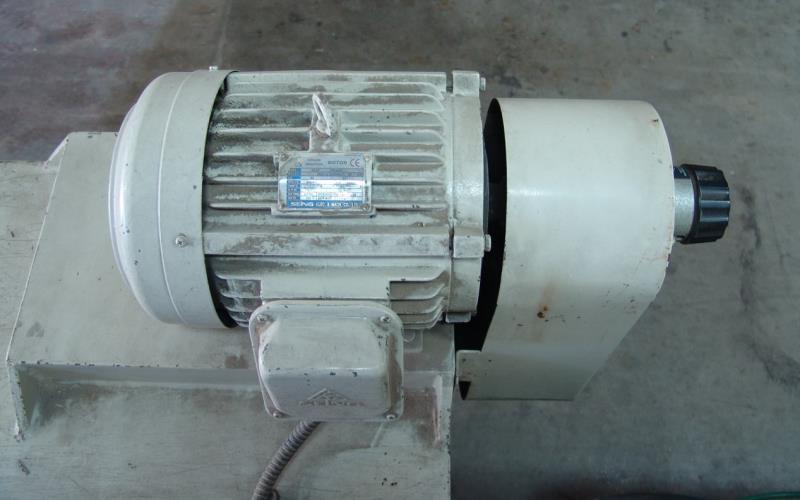

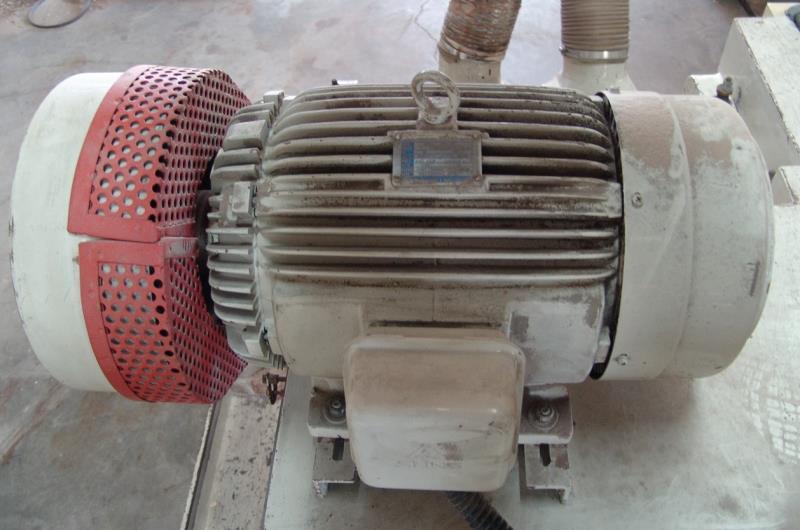

KUFO "GY-610S" ... Double Sided Planer, 24".Specifications:Capacity, wide 24" x 8" thickness, min. working thickness 1/4", min. material length 12"; top & bottom cutter head with spiral carbide insert knifes. Cutter-head speed 4200 RPM.25 HP top and 20 HP bottom belt driven motors; max. cutting depth 1/4" per head. Variable feed speed 20 - 65 FPM, powered by a 3-HP motor; 1-HP Gear head motor to open/close the the planer. Machine Features: Upper & lower spiral insert cutter-heads for accurate and powerful two sided planning in one pass. Total TCT insert knifes 180 pcs (2 edges per knife).Worktable surface is precision ground and chrome plated. The durable wear resistance surface is easy to clean and maintain. A heavy duty upper feed conveyor with metal spikes firmly holds stock securely to the work table providing a smooth finish for rough or final planning plus powered serrated and smooth steel rollers are driven with a geared transmission box linked with the heavy-duty drive chain for the most positive grip. A step-less variable speed control for smooth adjustment of feed rate depending on the material hardness, depth of cut & width to provide the best finish surface and fast cutting performance. Anti kick back device provides safety. Cast iron frame supports the work table and dampens potential vibrations. Includes:Electronic workpiece thickness control.Manual and automatic lubrication systems.RIGGING:Local Rigger available, ... for cost to load on a Flatbed Truck, please contact the Auction Manager.
|
