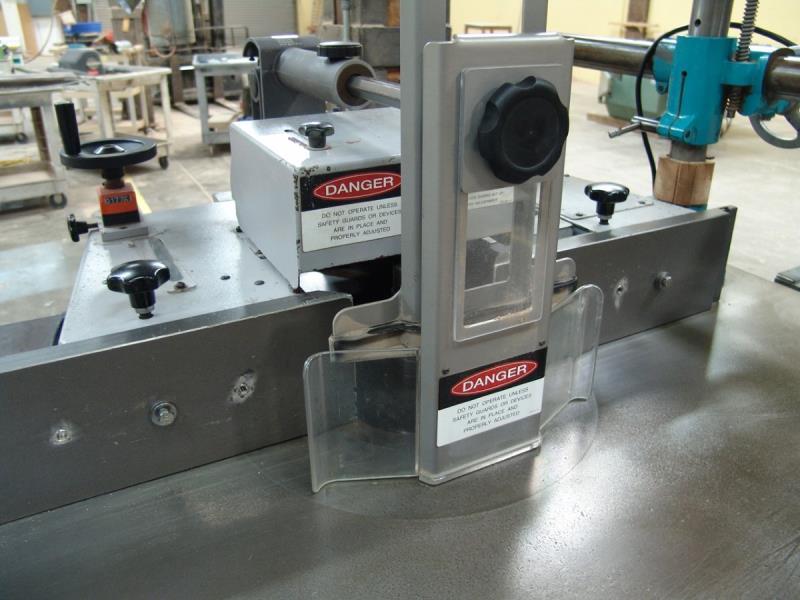

MARTIN T 26 TILTING SPINDLE SHAPER
Equipment Location: Carson, CA
| Lot Closes: |
|
(3/10/2021 2:26 PM EST)
|
|
Event:
|
|
Los Angeles Carvings
|
|
Brand/Model:
|
|
MARTIN "T 26"
|
|
Year MFG:
|
|
2003
|
|
Machine Type:
|
|
TILTING SPINDLE SHAPER
|
|
Serial #:
|
|
V ... 43520
|
|
Elect./Voltage:
|
|
220 V, 60 Cy, 3 Ph.
|
|
Location:
|
|
Carson, CA
|
|
Condition:
|
|
Good condition
|
| *Dimensions: | | 64" L x 60" W x 55" H |
| *Weight: | | 2,600 Lbs (estimate) |
|
Loading:
|
|
$ 100 Loading fee
|
|
Comment:
|
|
Heavy Duty ... Precision Shaper with Feeder & Conveyors.
|
|
Buyer Premium:
|
|
15%
|
Description:
(view full)
MARTIN T26, ... Shaper with UNIVER Power Feeder.Specifications:13 HP Motor, 1-1/4" spindle tilts -45° to +45° w/LED readouts for inclination; (4) spindle speeds of 3,000 - 4,500 - 6,000 & 9,000 RPM, 6" max. cap. under nut. Features:Motorized spindle height adjustment with (2) speed rates (rapid & creep) w/LED readouts, 6" approx. spindle travel; 49-1/2" x 35-1/2" cast iron table, 35-1/2" approx. table height. Fully adjustable hard coated aluminum fence w/digital readouts for positioning. Complete With:Tilt up/down safety guard, 4-3/4" dia. dust outlet & power feeder universal column.In & out feed idle roller conveyors, @ L-60", W-16" Includes: "UNIVER 1800" 4-Roll Power Feeder with (4) 4-1/2" dia. & 2" wide rubber feed rollers, 1 HP motor, (8) speeds of 8 - 16 - 18 - 23 - 36 - 46 - 49 & 98 FPM; fully adjustable mounting column w/locking joints & reversing switch.Height w/Feeder: 72"Approximate Weight: 2,950 Lbs.
|
