KTD KTD 6462 K BORING MACH. (FEED THRU LINE BORING)
Equipment Location: JUÁREZ, MX
| Lot Closes: |
|
(11/1/2024 2:15 PM EST)
|
|
Event:
|
|
South Shore Furniture
|
|
Brand/Model:
|
|
KTD "KTD 6462 K"
|
|
Year MFG:
|
|
2022
|
|
Machine Type:
|
|
BORING MACH. (FEED THRU LINE BORING)
|
|
Serial #:
|
|
6462210022
|
|
Elect./Voltage:
|
|
400 V, 50/60 Cy, 3 Ph.
|
|
Location:
|
|
JUÁREZ, MX
|
|
Condition:
|
|
New, Never Used
|
| *Dimensions: | | 210" L x 123" W x 79" H |
| *Weight: | | 0 Lbs (estimate) |
|
Loading:
|
|
Seller Loading
|
|
Comment:
|
|
New, never used in production!
|
|
Buyer Premium:
|
|
15%
|
Description:
(view full)
KTD KTD-6462K Through-Feed Boring Machine, with Vertical Top & Bottom and Horizontal End Boring
PURCHASING NOTE: Can be purchased by any company or individual, but to export to USA or Canada, it is subject to Mexican and U.S. or Canadian Customs requirements.
Specifications:
- Working length (X-Axis) 250 - 3,200 mm (9.84" - 125.98").
- Working width (Y-Axis) 250 - 900 mm (9.84" - 35.43").
- Max. working thickness 70 mm (2.76").
- Max. distance between (2) horizontal holes 640 mm (25.20").
- Max. distance between (2) vertical holes 896 mm (35.28").
- Min. distance between (2) vertical rows 28 mm (1.10").
- Max. vertical boring depth 50 mm (1.97").
- Max. horizontal boring depth: 40 mm (1.57").

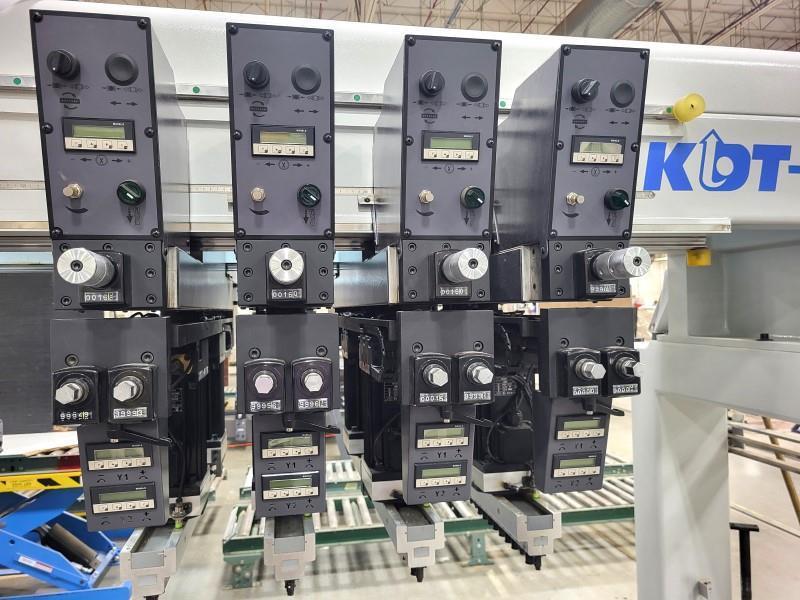

Equipped with: - Top vertical boring head, with (4) 11 + 11 Spindles.
- Bottom vertical boring head, with (6) 11 + 11 Spindles.
- (2) Horizontal boring heads, each with (21) Spindles.
- All spindles on 32 mm (1.26") centers.
|
KTD KTD-6462K Through-Feed Boring Machine, with Vertical Top & Bottom and Horizontal End Boring
PURCHASING NOTE: Can be purchased by any company or individual, but to export to USA or Canada, it is subject to Mexican and U.S. or Canadian Customs requirements.
Specifications:
- Working length (X-Axis) 250 - 3,200 mm (9.84" - 125.98").
- Working width (Y-Axis) 250 - 900 mm (9.84" - 35.43").
- Max. working thickness 70 mm (2.76").
- Max. distance between (2) horizontal holes 640 mm (25.20").
- Max. distance between (2) vertical holes 896 mm (35.28").
- Min. distance between (2) vertical rows 28 mm (1.10").
- Max. vertical boring depth 50 mm (1.97").
- Max. horizontal boring depth: 40 mm (1.57").
Equipped with: - Top vertical boring head, with (4) 11 + 11 Spindles.
- Bottom vertical boring head, with (6) 11 + 11 Spindles.
- (2) Horizontal boring heads, each with (21) Spindles.
- All spindles on 32 mm (1.26") centers.
