BIESSE SKIPPER 100 CNC MACHINING CENTER (2-HEAD)
Equipment Location: CITY OF INDUSTRY, CA
BP-230176   |   Lot # 004

For Immediate Help Contact:
Kevin Welker
Kevin Welker
(800) 374-5009 ext. 316
Intl. +1 (704) 841-2001
Email Me


Refresh
Input symbols

Lot Closes:

(10/30/2024  2:20 PM EST)
Opening Bid:   $ 3,250 NO RESERVE
Minimum Bid:   $ 3,250
# of Bids:   0

Your Bid:
Item Sold
This is a non-auction item up for sale. If interested, please call Kevin Welker at (877) 580-5844 ext. 316 or click on the link below.

Liquidation - My Offer Is

Your Proxy:        ?


Event:   Home Organizers – Sale #2
Brand/Model:   BIESSE "SKIPPER 100"
Year MFG:   2005
Machine Type:   CNC MACHINING CENTER (2-HEAD)
Serial #:   252
Elect./Voltage:   480 V, 60 Cy, 3 Ph.
Location:   CITY OF INDUSTRY, CA
Condition:   Good condition
*Dimensions: 250" L x 167" W x 76" H
*Weight: 8,000 Lbs (estimate)
Loading:   Rigger Required
Comment:   Includes infeed & outfeed tables!
Buyer Premium:   15%
Description:    (view full)

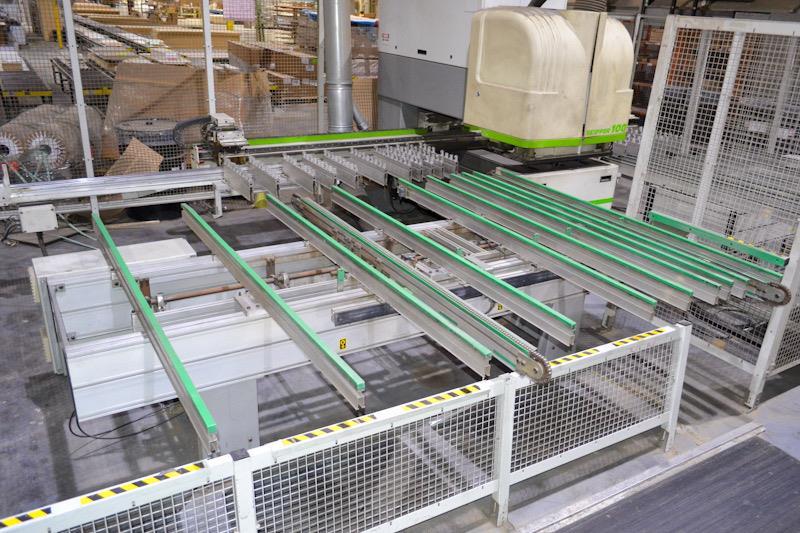

BIESSE SKIPPER 100 2-Head CNC Machining Center, with Infeed & Outfeed Tables – Seller states that machine was run (2) shifts from 2005 - 2021, then only a few hours per day since!

Specifications:

  • Flexible "Top & Bottom" Machining Center that uses an innovative panel handling system.

    Working Capacity:
  • "X" Axis 3,000 mm (118.11"), "Y" Axis 1,000 mm (39.37"), Max. part thickness 60 mm (2.36").
  • Min. workable part size: "X" Axis 90 mm (3.54"), "Y" Axis 70 mm (2.76"), & "Z" Axis 8 mm (0.31").

    Work Table:
  • Left-hand infeed & Right-hand outfeed, Each with 20-1/2” x 66” x 35-1/2” H infeed & outfeed areas with Fixed caster-type conveyor rails.

    Positioning Speed:
  • "X" Axis 120 MPM (393 FPM), "Y" Axis 90 MPM (295 FPM), "Z" Axis 30 MPM (98 FPM).

    Boring Units:
  • (1) Top & (1) Bottom boring blocks, Each with: 3 kW (4 HP) Motor, Boring spindle speed 4,000 RPM, (29) Vertical spindles with (17) "X" Axis & (12) "Y" Axis, (10) Horizontal spindles with (4 + 4) "X" Axis & (1 + 1) "Y" Axis, & (1) "X" Axis Grooving saw with 3 kW (4 HP) Motor, Blade speed 5,000 RPM, & Blade diameter 150 mm (5.91").

    Machining:
  • (1) Top & (1) Bottom 3.5 kW (4-3/4 HP) Electrospindles, Each with: Variable spindle speeds 7,000 - 18,000 RPM, Right-hand/Left-hand rotation, HSK D-50 Adapters for Manual push-button quick tool change, ERC-32 Toolholders & RC-32 Collets.

    Operator & Machine Control:
  • Mobile Control Console, with PC-Based Control, 18" LCD Monitor, BIESSE "WORKS" + "WINDOWS" Operating system.
  • Pedestal & Pendant controls.

    Equipped with:
  • Universal transformer, 200 - 600 V, 50/60 Cy, 3-Ph., Automatic lubrication system for guides & ways, Sound hood, 79" H Safety fence with Lock-out door, & TAPESWITCH "CONTROLMAT CKP" 24" x 72" Heavy-duty ribbed pressure-sensitive safety mat.

    Complete with:
  • 7’ x 9’ x 35-1/2” H Infeed Table, with Rails & Pusher.
  •  6-1/2’ x 8’ x 35-1/2” H Outfeed Table, with Transfer Belts.
  •  Handheld Bar Code Reader.
  •  Dust Manifold.

    Dimensions including Safety Fence: 307" x 184" x 98" H.
