WADKIN SILHOUETTE PROFILE/PLANER HEAD GRINDER
Equipment Location: WEST PALM BEACH, FL
| Lot Closes: |
|
(11/19/2024 3:45 PM EST)
|
|
Event:
|
|
Blumer & Stanton and Oliveri Millworks
|
|
Brand/Model:
|
|
WADKIN "SILHOUETTE"
|
|
Year MFG:
|
|
N/A
|
|
Machine Type:
|
|
PROFILE/PLANER HEAD GRINDER
|
|
Serial #:
|
|
05253
|
|
Elect./Voltage:
|
|
230 V, 60 Cy, 3 Ph.
|
|
Location:
|
|
WEST PALM BEACH, FL
|
|
Condition:
|
|
Good condition
|
| *Dimensions: | | 48" L x 42" W x 60" H |
| *Weight: | | 1,260 Lbs (estimate) |
|
Loading:
|
|
Seller Loading
|
|
Comment:
|
|
Complete with (2) cutterhead spindles!
|
|
Buyer Premium:
|
|
15%
|
Description:
(view full)

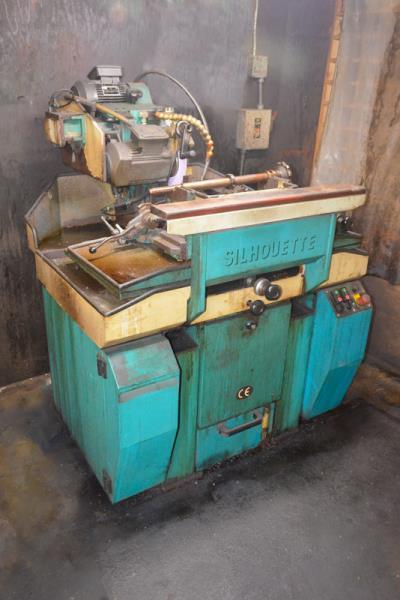

WADKIN SILHOUETTE NNU.300 Twin Grinding Head Profile Knife Grinder
Spcifications:
- Max. cutterhead dia.: 350 mm (13.78") Profiling, 300 mm (11.81") Straight knife & Sold profile.
- Max. cutterhead length: 335 mm (13.19") Hydroflx, 315 mm (12.40") Mechanical, & 245 mm (9.65") Solid profile.
- Min. cutting circle 70 mm (2.76").

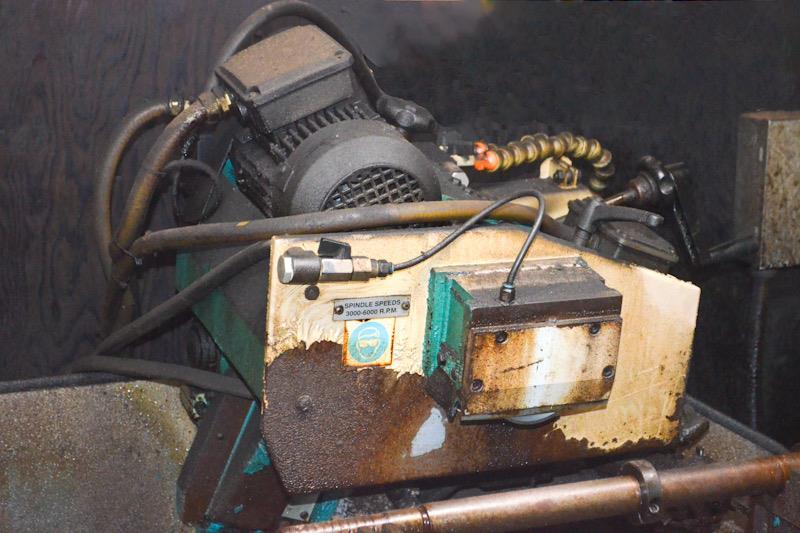

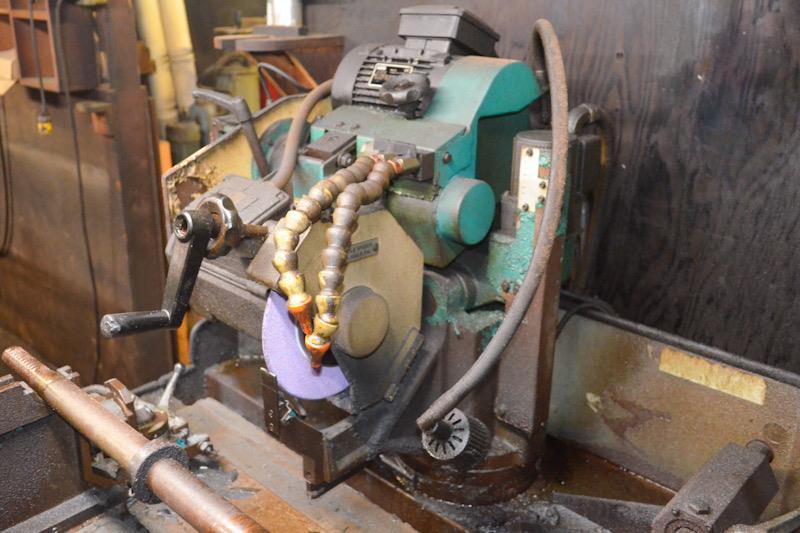

Equipped with: - Twin grinding head with (1) Profile spindle, with Spindle speeds 1,500 - 3,000 RPM & 2 HP Motor and (1) Straight knife spindle, with Spindle speeds 3,000 - 6,000 RPM & 1 HP Motor.
- Max. wheel size. 9" Dia. x 1-1/4" Bore.
- Stylus turret, with (6) stylus cap.
- 0.03 HP Tilt motor.
- Wheel dresser.
- 36 L (9.51 Gallon) Cap. Coolant system, with 0.12 HP Pump motor.
Complete with: - 1-1/4” Dia. & 1-13/16” Dia. Cutterhead Spindles.
|
WADKIN SILHOUETTE NNU.300 Twin Grinding Head Profile Knife Grinder
Spcifications:
- Max. cutterhead dia.: 350 mm (13.78") Profiling, 300 mm (11.81") Straight knife & Sold profile.
- Max. cutterhead length: 335 mm (13.19") Hydroflx, 315 mm (12.40") Mechanical, & 245 mm (9.65") Solid profile.
- Min. cutting circle 70 mm (2.76").
Equipped with: - Twin grinding head with (1) Profile spindle, with Spindle speeds 1,500 - 3,000 RPM & 2 HP Motor and (1) Straight knife spindle, with Spindle speeds 3,000 - 6,000 RPM & 1 HP Motor.
- Max. wheel size. 9" Dia. x 1-1/4" Bore.
- Stylus turret, with (6) stylus cap.
- 0.03 HP Tilt motor.
- Wheel dresser.
- 36 L (9.51 Gallon) Cap. Coolant system, with 0.12 HP Pump motor.
Complete with: - 1-1/4” Dia. & 1-13/16” Dia. Cutterhead Spindles.
