WYSONG & MILES 284 M2 HOLLOW CHISEL MORTISER
Equipment Location: WEST PALM BEACH, FL
| Lot Closes: |
|
(11/19/2024 3:38 PM EST)
|
|
Event:
|
|
Blumer & Stanton and Oliveri Millworks
|
|
Brand/Model:
|
|
WYSONG & MILES "284 M2"
|
|
Year MFG:
|
|
N/A
|
|
Machine Type:
|
|
HOLLOW CHISEL MORTISER
|
|
Serial #:
|
|
M2-379
|
|
Elect./Voltage:
|
|
220 V, 60 Cy, 3 Ph.
|
|
Location:
|
|
WEST PALM BEACH, FL
|
|
Condition:
|
|
Fair condition
|
| *Dimensions: | | 48" L x 47" W x 76" H |
| *Weight: | | 2,100 Lbs (estimate) |
|
Loading:
|
|
Seller Loading
|
|
Comment:
|
|
A fast, accurate, & rugged machine!
|
|
Buyer Premium:
|
|
15%
|
Description:
(view full)

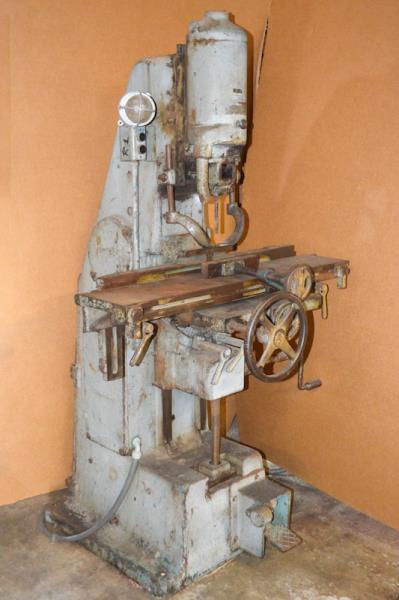

WYSONG & MILES 284 M2 Automatic Vertical Hollow Chisel Mortiser
Specifications:
- Max. chisel dia. 1-1/4", Max. bit dia. 5/8".
- Throat 6-1/4”.
- Max. distance from table to chisel 16".
- Table size 8” x 42”, with Tilt 45° Left & Right.
- Longitudinal table travel 13", Cross table travel 3-3/4", Vertical table travel 12".
- Max. chisel stroke 4-1/4".
- Speeds 15, 30, & 45 SPM.
Equipped with: - 5 HP - 3,600 RPM Spindle Motor.
- 1-1/2 HP Feed motor.
- (2) Stroke stops.
- Spacing gauge, with (6) Adjustable spring stops.
- Screw clamp.
- (2) Hold-downs.
- Foot pedal for Single stroke or continuous operation.
Complete with: - Fence.
|
