DIEHL 75 STRAIGHT LINE RIP SAW
Equipment Location: WEST PALM BEACH, FL
| Lot Closes: |
|
(11/19/2024 3:25 PM EST)
|
|
Event:
|
|
Blumer & Stanton and Oliveri Millworks
|
|
Brand/Model:
|
|
DIEHL "75"
|
|
Year MFG:
|
|
1948
|
|
Machine Type:
|
|
STRAIGHT LINE RIP SAW
|
|
Serial #:
|
|
48 1521
|
|
Elect./Voltage:
|
|
220/440 V, 60 Cy, 3 Ph.
|
|
Location:
|
|
WEST PALM BEACH, FL
|
|
Condition:
|
|
Good condition
|
| *Dimensions: | | 96" L x 78" W x 55" H |
| *Weight: | | 4,000 Lbs (estimate) |
|
Loading:
|
|
Seller Loading
|
|
Comment:
|
|
|
|
Buyer Premium:
|
|
15%
|
Description:
(view full)
DIEHL NO. 75 18" Straight Line Rip Saw
Specifications:
- Table size 52-1/2” x 80” x 34” H.
- Throat 21".
- Distance from front of blade to table 36".
- Max. blade dia. 18".
- Adjustable arbor dia. 2".
- Min. stock length 12".
- Max. stock thickness 4-1/4".
- Max. depth of cut 4".
- Variable feed speeds 40 - 145 FPM.
Equipped with: - 15 HP - 3,500 RPM Blade motor.
- Automatic arbor brake.

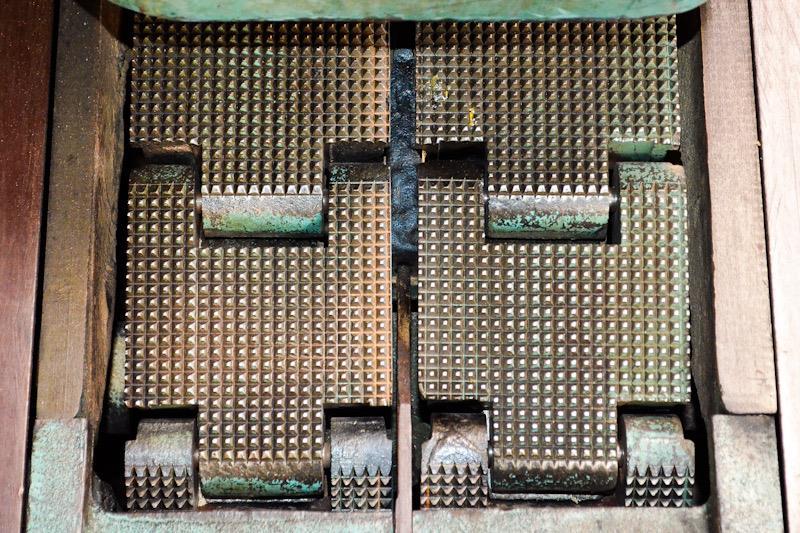

- 8-1/4" W Dual 4" W Pyramid corrugated feed chain, with 3 HP Motor.
- (8) 8” W hold-down rolls, Each with (4) 1-1/2” W Segments.
- Upper anti-kickback fingers with Cam height control.
- Automatic lubrication.
Complete with: - 29” W x 1-3/8” H Cast-Iron Fence.
|
