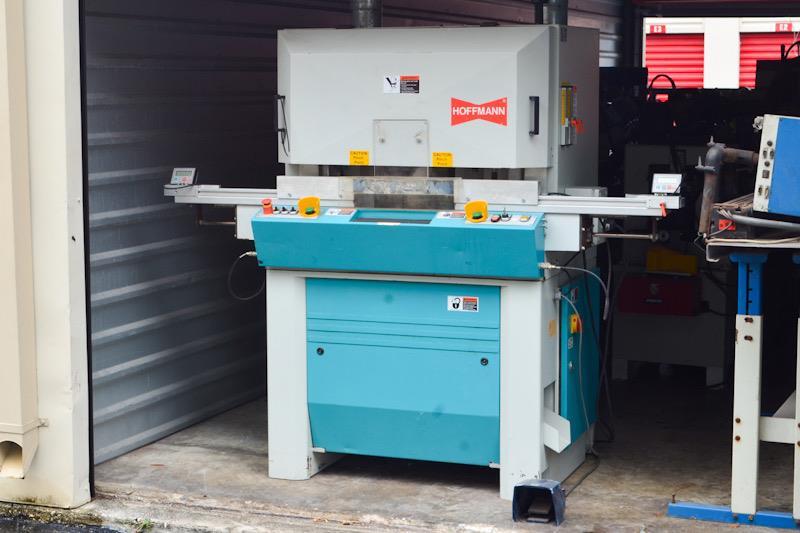

HOFFMANN MS 35SF DOUBLE MITER (PNEUMATIC)
Equipment Location: WEST PALM BEACH, FL
| Lot Closes: |
|
(11/19/2024 4:10 PM EST)
|
|
Event:
|
|
Blumer & Stanton and Oliveri Millworks
|
|
Brand/Model:
|
|
HOFFMANN "MS 35SF"
|
|
Year MFG:
|
|
2006
|
|
Machine Type:
|
|
DOUBLE MITER (PNEUMATIC)
|
|
Serial #:
|
|
45160
|
|
Elect./Voltage:
|
|
208-230 V, 60 Cy, 3 Ph
|
|
Location:
|
|
WEST PALM BEACH, FL
|
|
Condition:
|
|
Cleaned and checked
|
| *Dimensions: | | 76" L x 38" W x 78" H |
| *Weight: | | 1,665 Lbs (estimate) |
|
Loading:
|
|
Seller Loading
|
|
Comment:
|
|
Compete with (2) dovetail routers!
|
|
Buyer Premium:
|
|
15%
|
Description:
(view full)
HOFFMANN MS35-SF 350 mm (13.78") Double Miter Saw/Router
Specifications:
- Max. stock width 100 mm (3.50").
- Stock length 3" - 96".
- Max. stock thickness 100 mm (3.94").
- Blade dia. 350 mm (13.78"), Arbor dia. 30 mm (1.18"). Blade speed 2,850 RPM.
- Max. routing height 76 mm (2.99").
- Keyway location from tip of mitered end 6 - 80 mm (0.24" - 3.15").
Equipped with: - (2) 2.2 kW (3 HP) 3,360 RPM Blade motors.
- (4) Self-adjusting pneumatic hold-downs on each side, with Foot pedal control.
- 24” L Infeed & out feed tables, with (2) Servo-controlled length stop gauges, Each with LCD Display & Touchpad, & Extension with Support stand.
- Double palm button safety control.
Complete with: - (2) Dovetail Routers, Each with Collet cap. 6 mm (0.24"), Spindle speed 24,000 RPM, & 500 W (0.67 HP) Router motor, Router carriage cycles after saw blades retract, automatically routing dovetail keyways into one or both of mitered ends.
|
